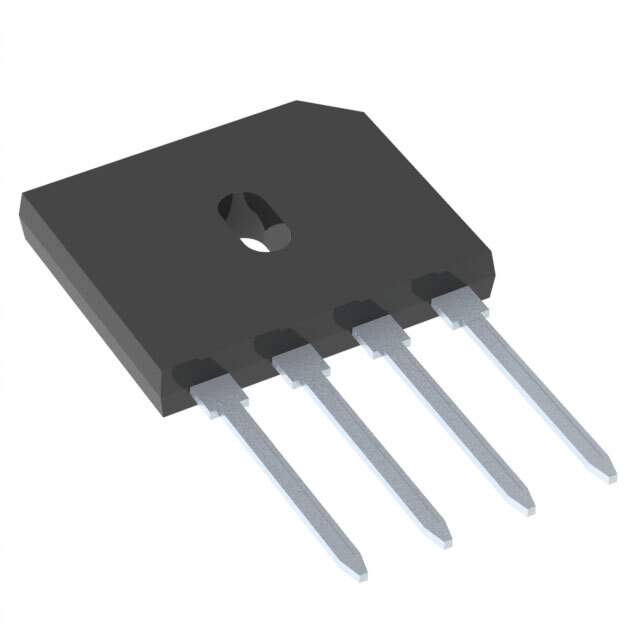

GBU8J-BP Real Image
Same model may have multiple batches, images only for reference.

GBU8J-BP

Part No GBU8J-BP
Manufacturer Micro Commercial Co
Catalog Bridge Rectifiers
Description RECT BRIDGE GPP 8A 600V GBU
Datasheet
GBU8J-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 1V @ 4A
Current - Reverse Leakage @ Vr 5μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBU
Win Source Part Number 1040890-GBU8J-BP
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian GBU8J-BP CAD Model

Description

The GBU8J-BP is a single-phase diode designed for rectification in standard technology.

  • Manufacturer: Micro Commercial Co
  • Product Name: GBU8J-BP
  • Package/Case: GBU
  • Mounting Type: Through-Hole
  • Average Rectified Current: 8A
  • Forward Voltage: 1V @ 4A
  • Reverse Leakage Current @ Vr: 5μA @ 600V
  • Peak Reverse Voltage: 600V
  • Operating Temperature: -55°C to 150°C (TJ)
