Maxim Integrated MAX9396EHJ+ Product Overview

The MAX9396EHJ+ is a high-performance, low-skew, 2:1 multiplexer from Maxim Integrated, designed to switch fast differential signals. This product is particularly suitable for applications that require high-speed data transfer and signal integrity, such as Gigabit Ethernet, Fibre Channel, and high-speed computing interfaces. With its advanced design, the MAX9396EHJ+ is an ideal choice for designers looking to optimize their high-speed signal routing with minimal distortion and attenuation.

This multiplexer is capable of handling differential signaling with data rates up to 3.2Gbps, ensuring compatibility with a wide range of high-speed protocols. The MAX9396EHJ+ offers a low propagation delay and very low jitter, which is critical for maintaining the quality of high-speed digital signals over long distances or through complex routing paths.

One of the key features of the MAX9396EHJ+ is its LVPECL-compatible I/O, which provides the necessary compatibility with existing system voltage levels and standards. The device operates from a single +3.3V supply, which simplifies power management in complex systems. Additionally, the MAX9396EHJ+ offers fail-safe circuitry that ensures a logic-high output when inputs are undriven, increasing the reliability of the system it is integrated into.

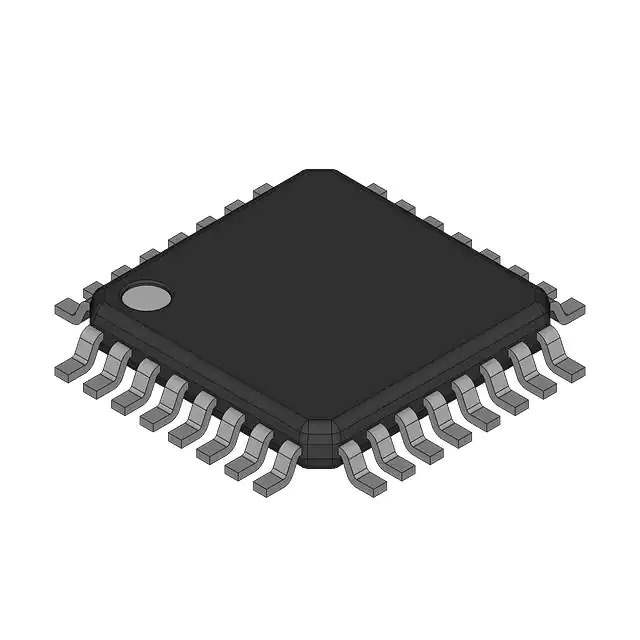

The MAX9396EHJ+ comes in a compact 32-pin TQFP (Thin Quad Flat Pack) package, which is conducive to space-constrained applications. The small form factor does not compromise its performance or functionality, making it an excellent choice for dense PCB layouts.

For design flexibility, the MAX9396EHJ+ features an internal termination that simplifies the interface design and reduces the need for external components. This, in turn, can lead to cost savings and reduced board space requirements. Furthermore, the device includes additional functions such as a programmable output voltage swing and an enable input that allows users to put the outputs into a high-impedance state, thereby reducing power consumption when the device is not in use.

Overall, the MAX9396EHJ+ from Maxim Integrated represents a robust solution for applications requiring the routing of high-speed differential signals with precision and reliability.
