Maxim Integrated's MAX20089ATPA/VY+T Automotive LED Driver

The MAX20089ATPA/VY+T is a sophisticated automotive LED driver integrated circuit from Maxim Integrated, designed to provide reliable and efficient control of LED lighting systems within automotive applications. This component is particularly suited for automotive exterior lighting, including headlights, tail lights, and indicator lights, offering designers a compact and flexible solution for their lighting needs.

Key Features

• Highly Integrated Solution: The MAX20089ATPA/VY+T combines a buck-boost controller, four 150mA channels with 6-bit current adjustment, and fault management circuitry in a single package, simplifying design and reducing external component count.
• Wide Input Voltage Range: Accommodating a broad input voltage range from 5.5V to 36V, this LED driver is capable of handling the fluctuating voltages typical in automotive power systems, ensuring consistent performance.
• Thermal Management: With thermal protection features, the device ensures reliable operation under varying temperature conditions, which is critical for automotive applications where temperature extremes are common.
• Flexible Dimming Options: The MAX20089ATPA/VY+T supports both PWM and analog dimming, allowing for precise control over the brightness levels of the LEDs.
• Robust Protection Features: It includes extensive protection against faults such as open and short LED conditions, overvoltage, and undervoltage lockout, safeguarding the LEDs and the driver itself from damage.

Applications

The MAX20089ATPA/VY+T is specifically tailored for the automotive industry, where it can be deployed in a variety of lighting applications. Its robust design is ideal for:

• Automotive front lights
• Daytime running lights (DRL)
• Rear combination lights
• Turn signals
• Adaptive lighting systems

Design Flexibility

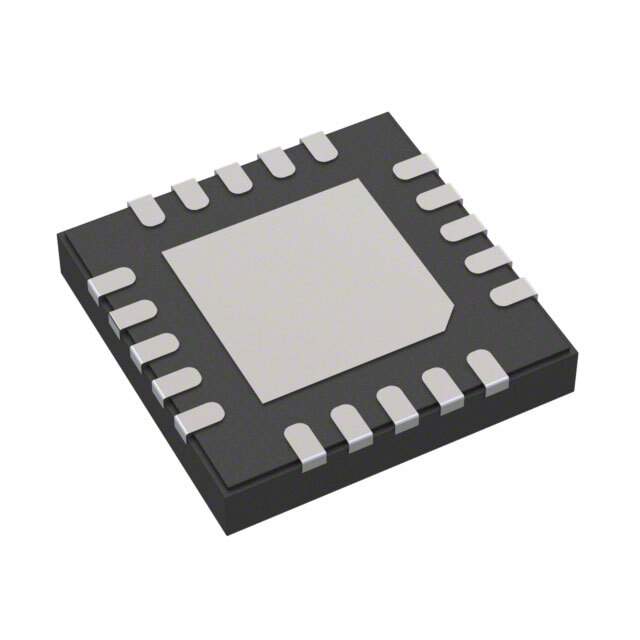

Maxim Integrated's MAX20089ATPA/VY+T is presented in a compact, 20-pin TQFN package with an exposed pad for enhanced thermal performance. Its small footprint and high level of integration make it a convenient choice for space-constrained automotive lighting designs. The device also supports Maxim's end-to-end design tools, providing engineers with resources to accelerate the development process and optimize system performance.

Overall, the MAX20089ATPA/VY+T from Maxim Integrated stands out as a high-performance, adaptable solution for modern automotive LED lighting systems, driving innovation in vehicle safety and aesthetics.
