Maxim Integrated's MAX1182ECM+D Dual 10-Bit, 60Msps, +3V, Low-Power ADC with Internal Reference

The MAX1182ECM+D from Maxim Integrated is a high-performance analog-to-digital converter (ADC) that offers a dual 10-bit resolution at a fast sampling rate of up to 60Msps (million samples per second). This integrated circuit is designed to operate with a single +3V supply, making it an ideal choice for low-power applications that require high-speed data acquisition.

One of the key features of the MAX1182ECM+D is its internal reference, which simplifies the design by eliminating the need for external precision reference components. This not only saves board space but also reduces the overall system cost and complexity. The ADC's internal reference is temperature-compensated, ensuring stable performance over a wide temperature range.

The device is equipped with dual channels, allowing for simultaneous sampling of two analog signals. This is particularly useful in applications where phase matching between channels is critical, such as in I/Q demodulation schemes, direct IF sampling, and multi-channel data acquisition systems.

The MAX1182ECM+D boasts excellent dynamic performance, featuring a signal-to-noise ratio (SNR) of 57.6dB and a spurious-free dynamic range (SFDR) of 70dB at a 2.2MHz input frequency. This ensures clean and accurate signal conversion, which is essential for high-fidelity applications such as medical imaging, communications, and digital signal processing.

For ease of integration into digital systems, the ADC provides a parallel LVDS (Low-Voltage Differential Signaling) output interface, which supports high-speed data transfers while minimizing signal noise and electromagnetic interference. The device also includes an overrange indicator, which can be used to detect when the input signal exceeds the predefined threshold, thus protecting downstream digital components from potential damage.

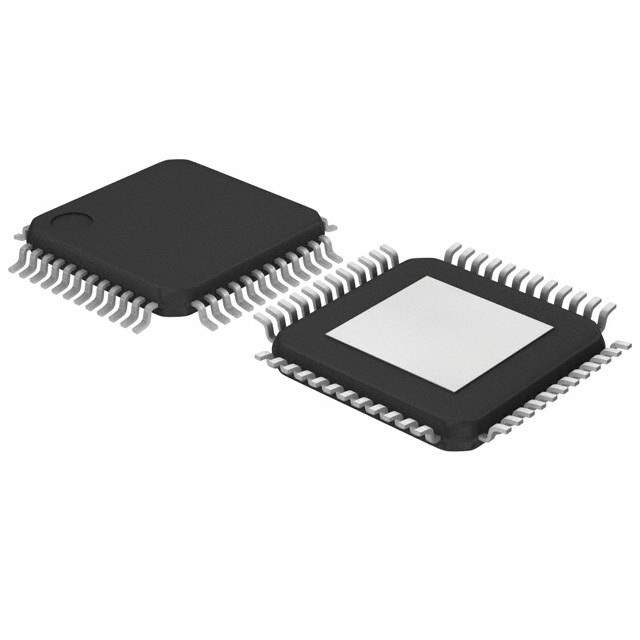

The MAX1182ECM+D is packaged in a compact 48-pin LQFP (Low-profile Quad Flat Package), which is suitable for space-constrained applications. Its low-power consumption, combined with the small form factor, makes it an excellent choice for portable and battery-operated devices.

Overall, the MAX1182ECM+D is an exceptional ADC solution from Maxim Integrated, offering high-speed, dual-channel data conversion with low power consumption and a built-in reference, making it a versatile component for a wide range of electronic systems.
