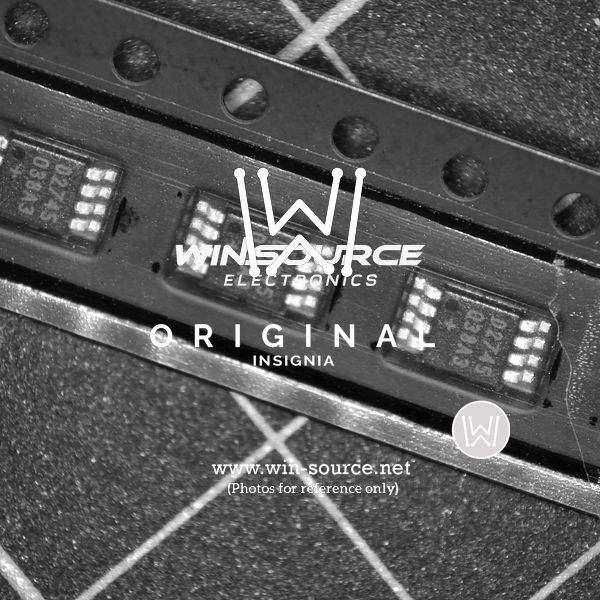

Maxim Integrated's DS2745U+ High-Precision Coulomb Counter

The DS2745U+ is a sophisticated battery fuel gauge IC from Maxim Integrated, designed to provide precise current flow measurement for battery-powered applications. This high-precision coulomb counter is an invaluable tool for managing and monitoring energy consumption in portable devices, ensuring optimal battery life and performance.

Featuring a wide dynamic range, the DS2745U+ is capable of measuring bidirectional current, making it suitable for applications that require charge and discharge monitoring. The device can measure current from microamps to amps, allowing for use in a diverse range of products, from small wearable technology to larger, more power-intensive devices.

The DS2745U+ integrates a current-sense amplifier, analog-to-digital converter (ADC), and data registers in a single package. It measures the voltage across an external sense resistor to accurately determine the charge and discharge activity of the battery. The precision ADC converts this voltage into digital form, which can then be read by an external microcontroller or processor via the 1-Wire® interface, a proprietary communication protocol developed by Maxim Integrated that requires only one data line (and ground) for communication.

This coulomb counter also features a nonvolatile (NV) memory for storing critical data such as battery capacity and age, which can be used to calculate the remaining battery life more accurately. This data retention capability is particularly useful in applications where battery performance needs to be tracked over time.

With its small form factor, the DS2745U+ comes in a compact, surface-mount package, making it ideal for space-constrained applications. It operates over a wide temperature range, ensuring reliable performance in various environmental conditions.

Overall, the DS2745U+ from Maxim Integrated offers a robust solution for battery fuel gauging, providing designers with a high degree of accuracy and reliability. Whether for consumer electronics, medical devices, or industrial equipment, this coulomb counter ensures that battery status is monitored with precision, prolonging device runtime and enhancing user experience.
