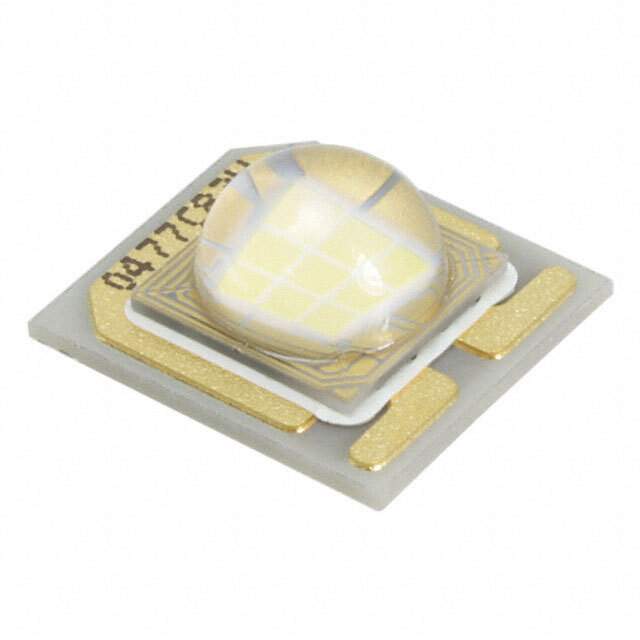

LXS8-PW30 Real Image
Same model may have multiple batches, images only for reference.

LXS8-PW30

Part No LXS8-PW30
Manufacturer Lumileds
Catalog LED Lighting - COBs, Engines, Modules
Description LED MOD LUXEON S1000 WARM WHT SQ / LED Lighting COBs Engines Modules LED Module series White, Warm Square
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Lumileds
Series LUXEON S1000
Package Tray
Product Status Obsolete
Type LED Module
Color White, Warm
CCT (K) 3000K
Configuration Square
Luminous Flux @ Current/Temperature 1390lm (Typ)
Current - Test 700mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 25.6V
Lumens/Watt @ Current - Test 78 lm/W
Current - Max 900mA
CRI (Color Rendering Index) 80
Viewing Angle 105°
Dimension 13.87mm L x 12.87mm W
Height 6.09mm
Light Emitting Surface (LES) 8.06mm Dia
Lens Type Domed
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1081,1417-1081-ND,1417-1081
Standard Package 500
Win Source Part Number 1073211-LXS8-PW30
Ultra Librarian 3D Model Ultra Librarian LXS8-PW30 CAD Model

Description

The Lumileds LUXEON S1000 1073211-LXS8-PW30 is a white and warm LED module.

  • Viewing Angle: 105 degrees
  • Forward Voltage: 25.6V
  • Thermal Resistance: 3 degrees Celsius per watt
  • Light Emitting Surface Diameter: 8.06mm
  • CCT: 3000K
  • CRI: 80
