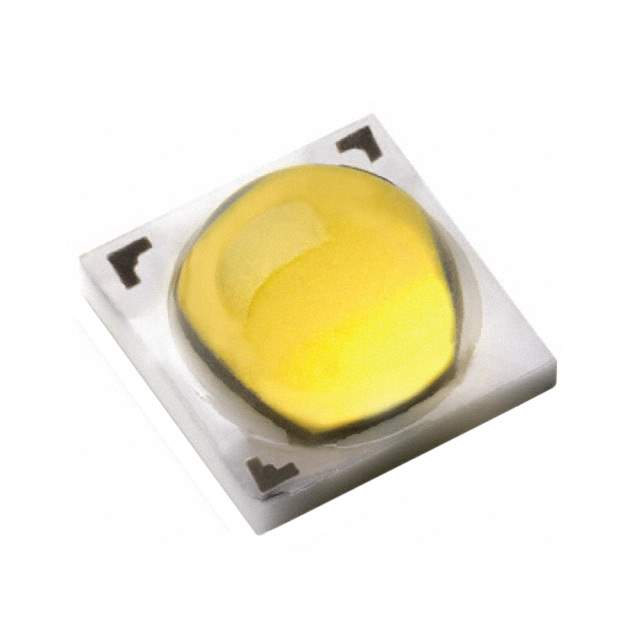

LXH8-FW40-5 Real Image
Same model may have multiple batches, images only for reference.

LXH8-FW40-5

Part No LXH8-FW40-5
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON NEU WHITE 4000K 3SMD / LED Lighting series White, Neutral 4000K 5-Step MacAdam Ellipse 2.8V 700mA 120° 2-SMD, No Lead Exposed Pad
Datasheet
LXH8-FW40-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumileds
Series LUXEON T
Package Tape & Reel
Product Status Obsolete
Color White, Neutral
CCT (K) 4000K 5-Step MacAdam Ellipse
Flux @ 85°C, Current - Test 212lm (Typ)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.8V
Lumens/Watt @ Current - Test 108 lm/W
CRI (Color Rendering Index) 80
Current - Max 1.2A
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead Exposed Pad
Dimension 0.146" L x 0.146" W (3.70mm x 3.70mm)
Height - Seated (Max) 0.083" (2.12mm)
Thermal Resistance of Package 3°C/W
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1417-1015-2,1417-1015-2-ND,1416-1015-2,1416-1015-1,1417-1015-1,1417-1015-6-ND,1417-1015-1-ND,1416-1015-6,1417-1015-6
Standard Package 1,000
Win Source Part Number 977810-LXH8-FW40-5
Ultra Librarian 3D Model Ultra Librarian LXH8-FW40-5 CAD Model

Description

The LXH8-FW40-5 is a white LED from Lumileds.

  • Series: LUXEON T series
  • Color: Neutral White
  • Current Max: 1.2A
  • Current Test: 700mA
  • Viewing Angle: 120 degrees
  • Voltage Forward: 2.8V
  • CCT: 4000K
  • CRI: 80
  • Luminous Flux: 212lm
  • Mounting: Surface Mount
  • RoHS: RoHS Compliant
  • ECCN: EAR99
