Same model may have multiple batches, images only for reference.

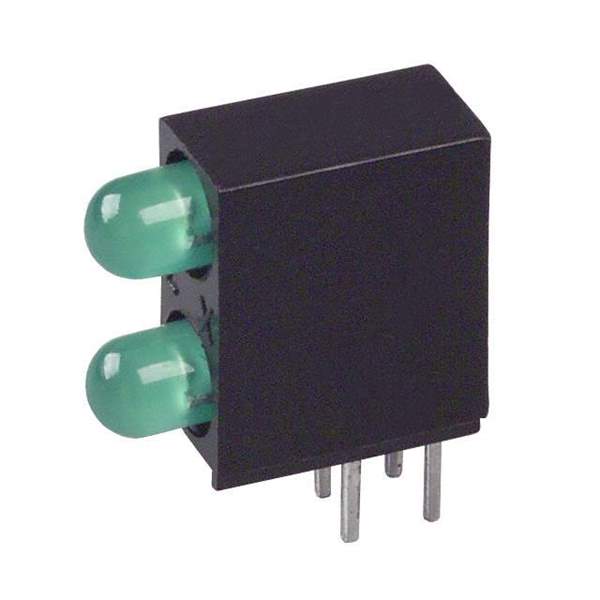

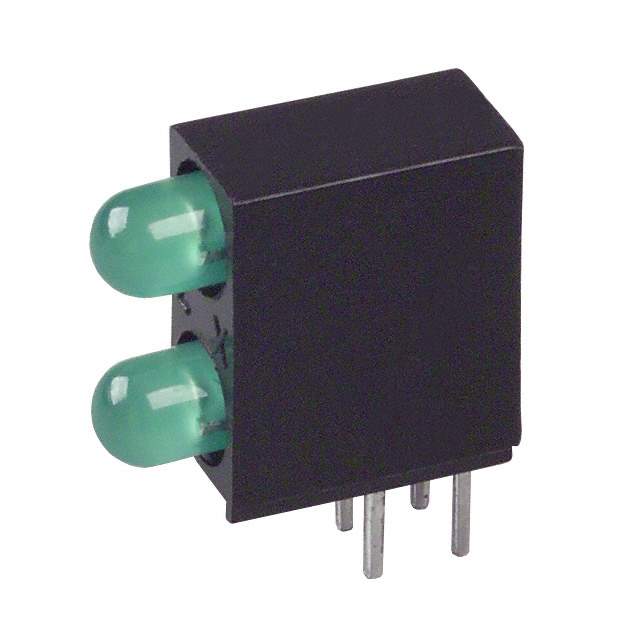

SSF-LXH240GGD Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH240GGD

Part No SSF-LXH240GGD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED Bi-Level Uni-Color Green 565nm 4-Pin Bulk / LED 3MM RA 2-HI GRN/GRN PC MNT
Datasheet
SSF-LXH240GGD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lumex Opto/Components Inc.
Packaging Bulk
Color Green (x 2)
Wavelength - Peak 565nm
Configuration 2 High
Current 20mA
Millicandela Rating 40mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style/Size Round with Domed Top, 3mm (T-1)
Voltage Rating 2.2V
Mounting Through Hole, Right Angle
Win Source Part Number 784785-SSF-LXH240GGD
Popularity Medium
Supply and Demand Status Balance
Family Name 1002454
Introduction Date June 28, 2001
ECCN EAR99
Country of Origin China
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian SSF-LXH240GGD CAD Model

Description

The SSF-LXH240GGD from Lumex Opto/Components Inc. is a green colored through-hole LED with a right-angle mounting configuration.

  • Lens: Round Diffused and Tinted, Domed Top
  • Lens Size: 3mm (T-1)
  • Viewing Angle: 60 degrees
  • Peak Wavelength: 565nm
  • Voltage: 2.2V
  • Millicandela: 40mcd
  • Current: 20mA
  • Family: 1002454
