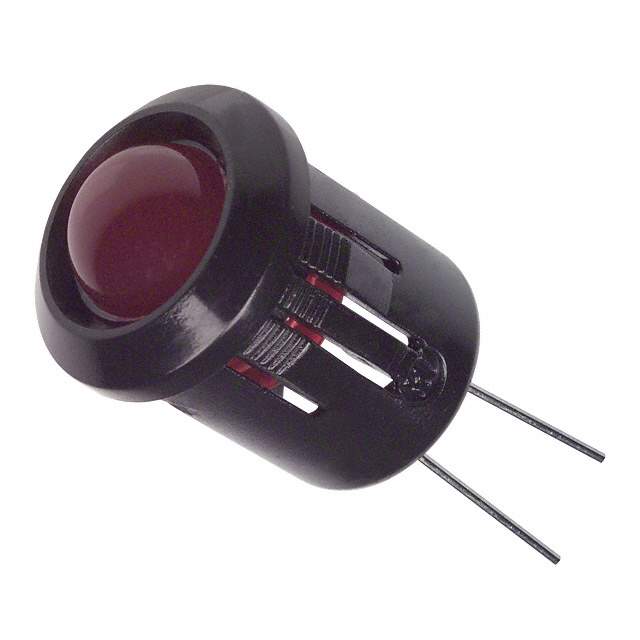

SSI-LXH8080SRD Real Image
Same model may have multiple batches, images only for reference.

SSI-LXH8080SRD

Part No SSI-LXH8080SRD
Manufacturer Lumex Opto/Components Inc.
Catalog Panel Indicators, Pilot Lights
Description LED 8MM SUPER RED DIFF PANEL MNT / LED Panel Indicator Red Diffused 60° 1.7V 30mA
Datasheet
SSI-LXH8080SRD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Mfr Lumex Opto/Components Inc.
Package Bulk
Type LED
Lamp Color Red
Lens Color Red
Lens Transparency Diffused
Ratings Vf (Typ), If (Max)
Voltage 1.7V
Current 30mA
Panel Cutout Shape Round
Panel Cutout Dimensions 0.47" (11.94mm)
Lens Size 8.00mm Dia
Lens Style Round with Domed Top
Millicandela Rating 80mcd
Wavelength - Peak 660nm
Viewing Angle 60°
Base Product Number SSI-LXH8080
Other Names SSILXH8080SRD,67-1170R,67-1170,LU1005B1
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1237833-SSI-LXH8080SRD
Ultra Librarian 3D Model Ultra Librarian SSI-LXH8080SRD CAD Model

Description

The Lumex Opto/Components Inc. SSI-LXH8080SRD is a red LED panel indicator that comes in a round shape with a domed top.

  • Panel Cutout Dimension: 0.47” (11.94mm)
  • Lens Size: 8.00mm diameter
  • Viewing Angle: 60°
  • Millicandela Rating: 80mcd
  • Voltage: 1.7V
  • Current: 30mA
  • Status: limited supply
