Same model may have multiple batches, images only for reference.

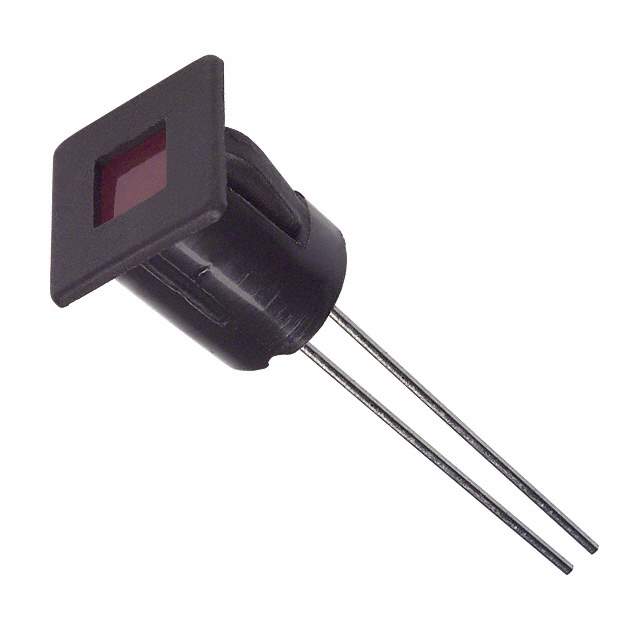

SSI-LXH55SRD Real Image
Same model may have multiple batches, images only for reference.

SSI-LXH55SRD

Part No SSI-LXH55SRD
Manufacturer Lumex Opto/Components Inc.
Catalog Panel Indicators, Pilot Lights
Description LED 5X5MM SQR SUP RED PANEL MNT / LED Panel Indicator Red Diffused 80° 1.7V 30mA
Datasheet
SSI-LXH55SRD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Mfr Lumex Opto/Components Inc.
Package Bulk
Type LED
Lamp Color Red
Lens Color Red
Lens Transparency Diffused
Ratings Vf (Typ), If (Max)
Voltage 1.7V
Current 30mA
Panel Cutout Shape Square
Panel Cutout Dimensions 0.35" x 0.35" (8.89mm x 8.89mm)
Lens Size 4.40mm
Lens Style Square with Flat Top
Millicandela Rating 20mcd
Wavelength - Peak 660nm
Viewing Angle 80°
Base Product Number SSI-LXH55
Other Names 67-1178R,67-1178,LU1007B1
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1237832-SSI-LXH55SRD
Ultra Librarian 3D Model Ultra Librarian SSI-LXH55SRD CAD Model

Description

This electronic component is another LED panel indicator or pilot light that falls under the category of optoelectronics.

  • Win Source Part Number: 1237832-SSI-LXH55SRD
  • Termination Style: no termination style
  • Voltage: 1.7V
  • Package: bulk
  • Standard Package: 100
  • Viewing Angle: 80 degrees
  • Lens Color: red
  • Lens Transparency: diffused
  • Millicandela Rating: 20mcd
  • Lamp Color: red
  • Current: 30mA
  • Panel Cutout Dimensions: 0.35 inches by 0.35 inches
  • Lens Style: square with a flat top
  • Lens Size: 4.40mm
  • ECCN: EAR99
  • REACH: unaffected
  • HTSUS: 8541.41.0000
  • Manufacturer: Lumex Opto/Components Inc.
