Same model may have multiple batches, images only for reference.

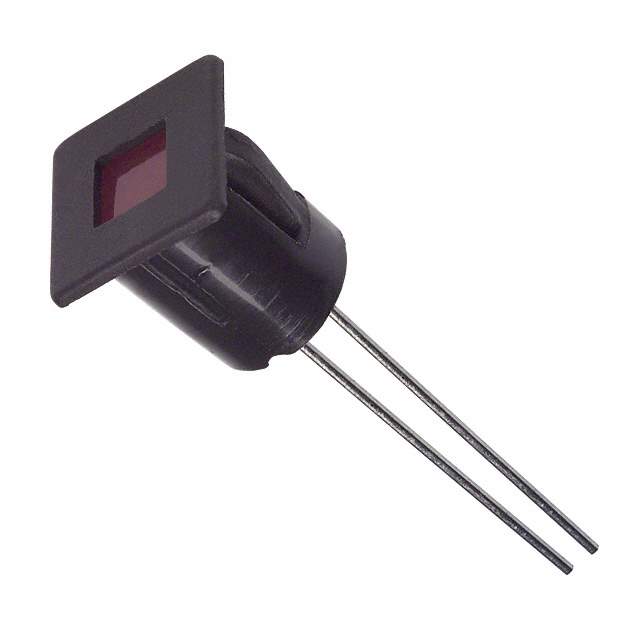

SSI-LXH55ID Real Image
Same model may have multiple batches, images only for reference.

SSI-LXH55ID

Part No SSI-LXH55ID
Manufacturer Lumex Opto/Components Inc.
Catalog Panel Indicators, Pilot Lights
Description LED 5X5MM SQR RED DIFF PANEL MT / LED Panel Indicator Red Diffused 80° 2V 30mA
Datasheet
SSI-LXH55ID Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Mfr Lumex Opto/Components Inc.
Package Bulk
Type LED
Lamp Color Red
Lens Color Red
Lens Transparency Diffused
Ratings Vf (Typ), If (Max)
Voltage 2V
Current 30mA
Panel Cutout Shape Square
Panel Cutout Dimensions 0.55" (13.97mm)
Lens Size 4.40mm
Lens Style Square with Flat Top
Millicandela Rating 10mcd
Wavelength - Peak 635nm
Viewing Angle 80°
Base Product Number SSI-LXH55
Other Names 67-1175,SSILXH55ID,67-1175R,LU10071
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1237808-SSI-LXH55ID
Ultra Librarian 3D Model Ultra Librarian SSI-LXH55ID CAD Model

Description

The SSI-LXH55ID is a square-shaped LED panel indicator from Lumex Opto/Components Inc. that emits red light with a diffused lens transparency.

  • Viewing Angle: 80 degrees
  • Millicandela Rating: 10mcd
  • Peak Wavelength: 635nm
  • Voltage: 2V
  • Current: 30mA
  • Panel Cutout Dimensions: 0.55 inches (13.97mm)
  • Panel Cutout Shape: Square
  • Lens Size: 4.40mm
  • Lens Shape: Square with a Flat Top
  • Package: Bulk
  • Standard Package: 100
