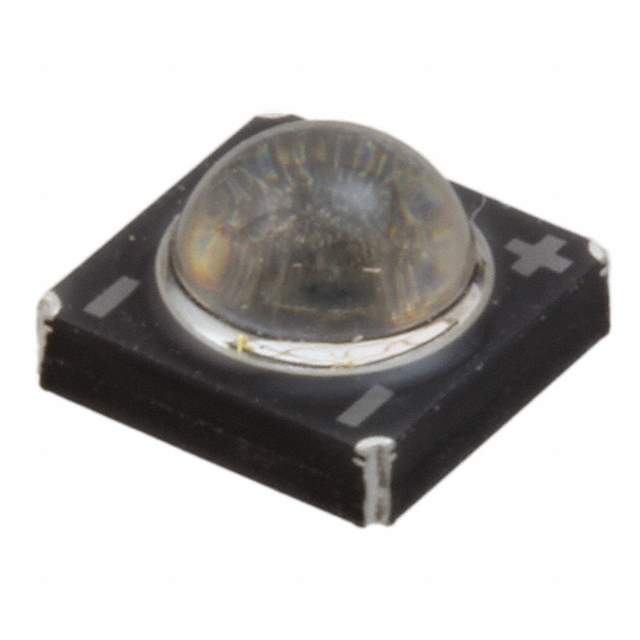

LZ1-00UA00-00U8 Real Image
Same model may have multiple batches, images only for reference.

LZ1-00UA00-00U8

Part No LZ1-00UA00-00U8
Manufacturer LED Engin Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER UV 410NM 1A SMD
Datasheet
LZ1-00UA00-00U8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer LED Engin Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Ultraviolet (UV)
Continuous forward current- Max 1A
Wavelength 410nm
Forward Voltage 4.1V
Viewing Angle 74°
Orientation Top View
Temperature Range - Operating 125°C (TJ)
Mounting SMD (SMT)
Dimension 4-SMD, No Lead Exposed Pad
Win Source Part Number 142209-LZ1-00UA00-00U8
Ultra Librarian 3D Model Ultra Librarian LZ1-00UA00-00U8 CAD Model

Description

The LZ1-00UA00-00U8 is an ultraviolet (UV) LED manufactured by LED Engin Inc. It is designed for use in applications such as curing, counterfeit detection, and medical equipment.

  • Forward Voltage: 4.1V
  • Viewing Angle: 74 degrees
  • Wavelength: 410nm
  • Radiant Intensity (Ie) min @ If: Not specified
  • Mounting Technology: Surface Mount Technology (SMT)
  • Package: 4-SMD, no lead exposed pad
  • Status: Obsolete (EOL)
  • Operating Temperature Range: 125 degrees Celsius (TJ)
