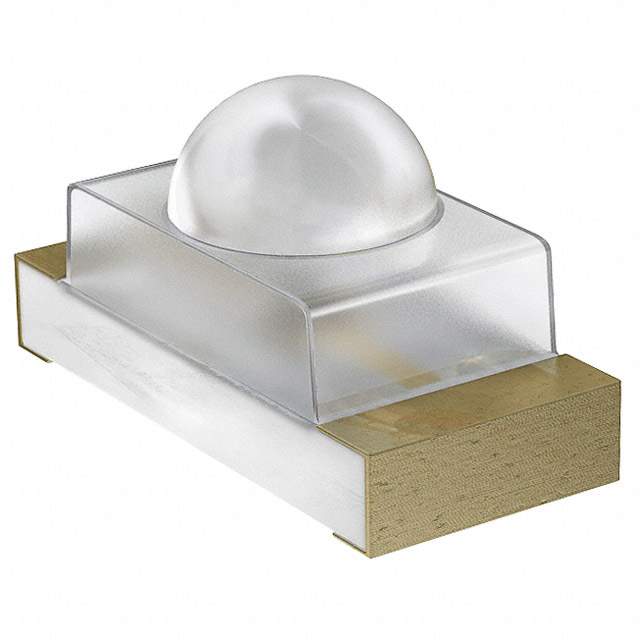

APTD1608LSECK/J3-PF Real Image
Same model may have multiple batches, images only for reference.

APTD1608LSECK/J3-PF

Part No APTD1608LSECK/J3-PF
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED RED CLEAR 2SMD / Red 625nm LED Indication - Discrete 1.8V 0603 (1608 Metric)
Datasheet
APTD1608LSECK/J3-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Series HELI2
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 50mcd
Lens Style Round with Domed Top
Lens Size 0.70mm Dia
Voltage - Forward (Vf) (Typ) 1.8V
Current - Test 2mA
Viewing Angle 60°
Mounting SMD (SMT)
Wavelength - Dominant 625nm
Wavelength - Peak 640nm
Package / Case 0603 (1608 Metric)
Supplier Device Package 2-SMD
Dimension 1.60mm L x 0.80mm W
Height (Max) 1.10mm
Base Product Number APTD1608
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-1945-1,754-1945-2,754-1945-6
Standard Package 2,000
Win Source Part Number 1213196-APTD1608LSECK/J3-PF
Ultra Librarian 3D Model Ultra Librarian APTD1608LSECK/J3-PF CAD Model

Description

The HELI2 series LED indication component from Kingbright is a high-quality electronic component with a red color.

  • Color: Red
  • Viewing Angle: 60 degrees
  • Millicandela Rating: 50mcd
  • Voltage-Forward: 1.8V
  • Current-Test: 2mA
  • Wavelength-Dominant: 625nm
  • Wavelength-Peak: 640nm
  • Package/Case: 0603 (1608 Metric)
  • Supplier Device Package: 2-SMD
  • Lens Style: Round with a domed top
  • Lens Size: 0.70mm Dia.
  • Height: 1.10mm
  • Dimension: 1.60mm L x 0.80mm W
  • Suitable for: Use in optoelectronics applications
