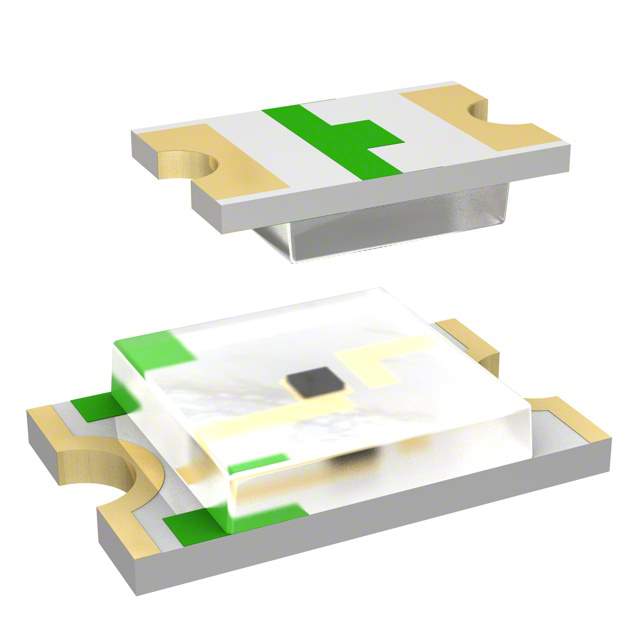

APHCM2012ZGC-F01 Real Image
Same model may have multiple batches, images only for reference.

APHCM2012ZGC-F01

Part No APHCM2012ZGC-F01
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED GREEN CLEAR CHIP SMD / Green 525nm LED Indication - Discrete 3.3V 0805 (2012 Metric)
Datasheet
APHCM2012ZGC-F01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 400mcd
Lens Style Rectangle with Flat Top
Lens Size 1.30mm x 1.25mm
Voltage - Forward (Vf) (Typ) 3.3V
Current - Test 20mA
Viewing Angle 110°
Mounting SMD (SMT)
Wavelength - Dominant 525nm
Wavelength - Peak 515nm
Package / Case 0805 (2012 Metric)
Supplier Device Package Chip LED
Dimension 2.00mm L x 1.25mm W
Height (Max) 0.40mm
Base Product Number APHCM2012
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names APHCM2012ZGCF01,APHCM2012-MAN23-NDL,APHCM2012-MAN23,754-1099-6,754-1099-1,Q4279136A,754-1099-2
Standard Package 2,000
Win Source Part Number 1045612-APHCM2012ZGC-F01
Ultra Librarian 3D Model Ultra Librarian APHCM2012ZGC-F01 CAD Model

Description

The 1045612-APHCM2012ZGC-F01 is a chip LED with a rectangular flat top lens style and clear lens transparency from Kingbright.

  • Viewing Angle: 110 degrees
  • Millicandela Rating: 400mcd
  • Voltage-Forward (Vf): 3.3V @ 20mA
  • Current Test: 20mA
  • Wavelength-Dominant: 525nm
  • Wavelength-Peak: 515nm
  • Package: 0805 (2012 Metric)
  • Dimension: 2.00mm L x 1.25mm W
  • Height: 0.40mm
  • Configuration: Standard
  • Packaging: Tape and Reel
  • Quantity per Package: 2,000
  • MSL Level: 3 (168 Hours)
