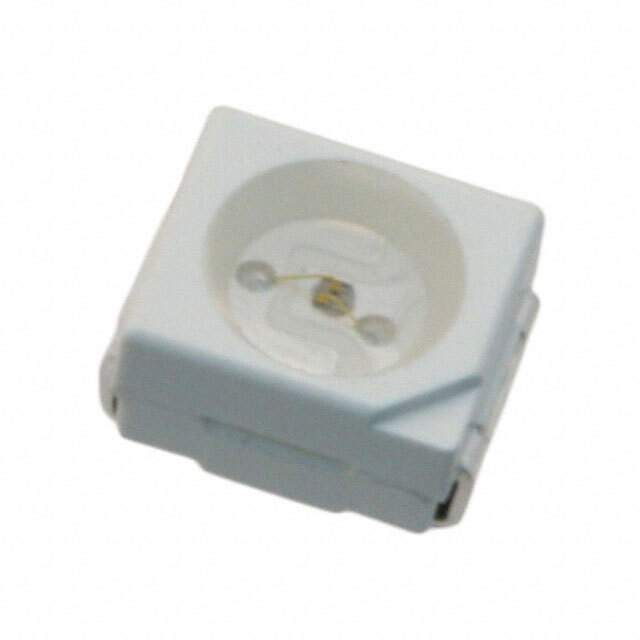

AA3528ZGS Real Image
Same model may have multiple batches, images only for reference.

AA3528ZGS

Part No AA3528ZGS
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED GREEN CLEAR SMD / Green 525nm LED Indication - Discrete 3.3V 2-PLCC
Datasheet
AA3528ZGS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 600mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 3.3V
Current - Test 20mA
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 525nm
Wavelength - Peak 515nm
Package / Case 2-PLCC
Supplier Device Package SMD
Dimension 3.20mm L x 2.80mm W
Height (Max) 2.10mm
Base Product Number AA3528
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-1515-2,754-1515-1,754-1515-6
Standard Package 2,000
Win Source Part Number 1229176-AA3528ZGS
Ultra Librarian 3D Model Ultra Librarian AA3528ZGS CAD Model

Description

The Kingbright 1229176-AA3528ZGS is a green LED indication with a tape and reel package.

  • Mounting: SMD (SMT)
  • Configuration: Standard
  • Viewing Angle: 120 degrees
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Millicandela Rating: 600mcd
  • Voltage-Forward (Vf) (Typ): 3.3V @ 20mA
  • Wavelength-Dominant: 525nm
  • Wavelength-Peak: 515nm
  • Height (Max): 2.10mm
  • Package/Case: 2-PLCC
  • Supplier Device Package: SMD
  • Dimension: 3.20mm L x 2.80mm W
  • Lens Style: Round with a flat top
  • Lens Size: 2.40mm diameter
  • Alternative Parts: AA3528ZGS
  • Category: Optoelectronics
  • ECCN: EAR99
  • REACH Status: REACH unaffected
  • HTSUS: 8541.41.0000
  • Base Product Number: AA3528
