Same model may have multiple batches, images only for reference.

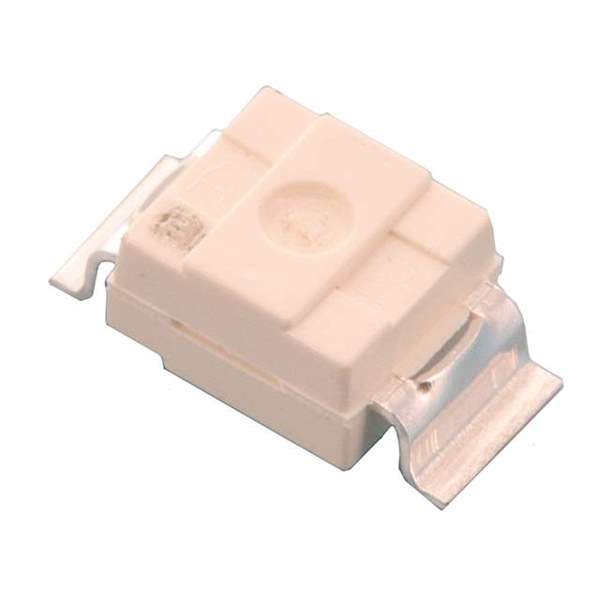

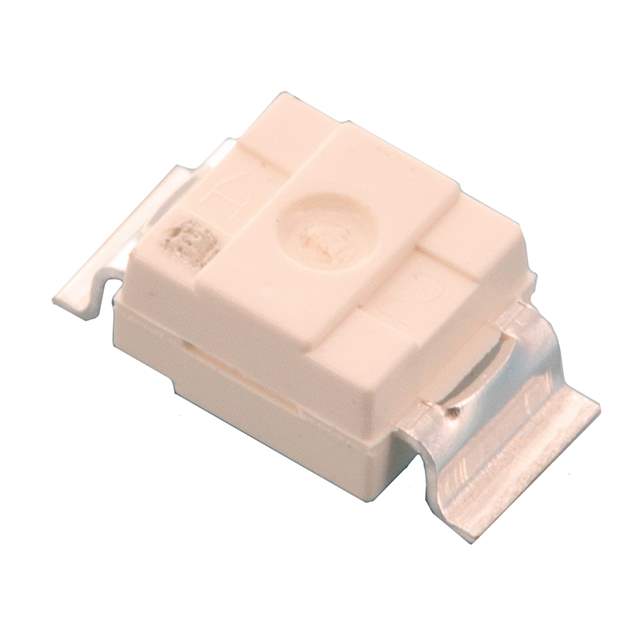

AA3528SECKT09 Real Image
Same model may have multiple batches, images only for reference.

AA3528SECKT09

Part No AA3528SECKT09
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED ORANGE CLEAR SMD BOTTOM ENT / Orange 605nm LED Indication - Discrete 2.1V 2-SMD, Gull Wing
Datasheet
AA3528SECKT09 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Series Heli-R
Package Tape & Reel
Color Orange
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 230mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 120°
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 605nm
Wavelength - Peak 610nm
Package / Case 2-SMD, Gull Wing
Supplier Device Package SMD
Dimension 3.20mm L x 2.80mm W
Height (Max) 2.15mm
Base Product Number AA3528
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-AA3528SECKT09TR,754-AA3528SECKT09DKR,754-AA3528SECKT09CT
Standard Package 2,000
Win Source Part Number 1209906-AA3528SECKT09
Ultra Librarian 3D Model Ultra Librarian AA3528SECKT09 CAD Model

Description

The AA3528SECKT09 LED indication is a discrete device from Kingbright that is part of the Heli-R series.

  • Color: Orange
  • Millicandela Rating: 230mcd
  • Forward Voltage: 2.1V
  • Package: 2-SMD, Gull Wing
  • Dimension: 3.20mm L x 2.80mm W
  • Viewing Angle: 120°
  • Lens Style: Round with flat top
