Same model may have multiple batches, images only for reference.

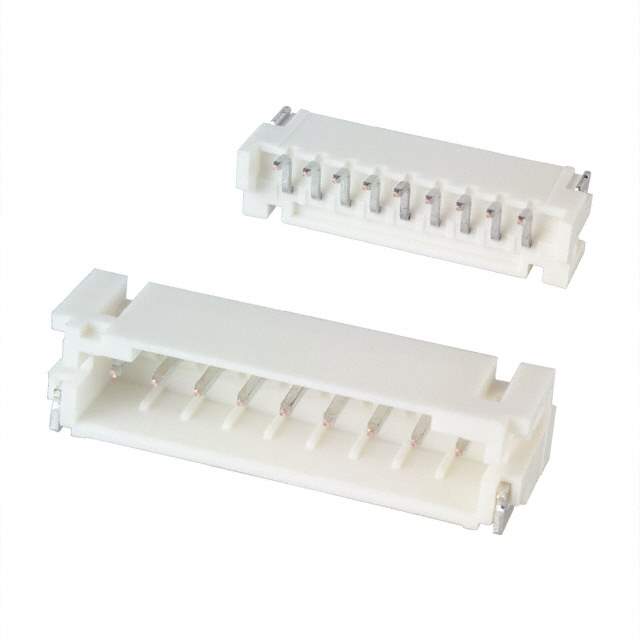

S9B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S9B-PH-SM4-TB(LF)(SN)

Part No S9B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 9POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 33 Weeks
Features Connector Header position
Manufacturer JST Sales America Inc.
Series PH
Package Reel - TR
Family Name S9B-PH-S
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 455-1756-6, S9BPHSM4TBLFSN, S9B-PH-SM4-TB (LF)(SN), (D)S9B-PH-SM4-TB(LF)(SN), S9B-PH-SM4-TB (LF) (SN), 455-1756-1, 455-1756-2
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 846621-S9B-PH-SM4-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S9B-PH-SM4-TB(LF)(SN) CAD Model

Description

The 846621-S9B-PH-SM4-TB(LF)(SN) is a connector header position connector with a medium popularity. Bold the product name (e.g., BAV99S,135 → 846621-S9B-PH-SM4-TB(LF)(SN)) and manufacturer (e.g., Nexperia USA Inc. → JST Sales America Inc.).

  • Popularity: Medium
  • Series: PH
  • Family Name: S9B-PH-S
  • Package: Reel - TR
  • Quantity per Package: 1000
  • ECCN: EAR99
  • Estimated Production Lead Time: 33 weeks
