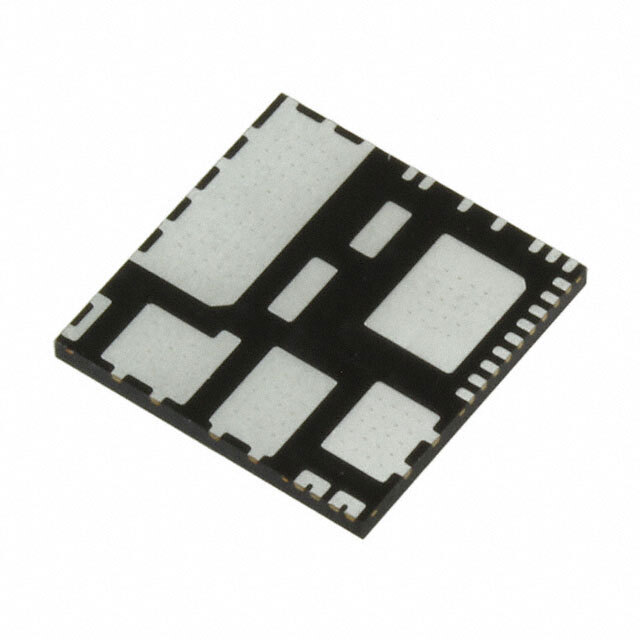

IRSM836-084MA Infineon Technologies
Same model may have multiple batches, images only for reference.

IRSM836-084MA

Part No IRSM836-084MA
Manufacturer Infineon Technologies
Catalog PMIC - Full, Half - Bridge Drivers
Description IC HALF BRIDGE DRIVER 7A 36QFN
Datasheet
IRSM836-084MA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Full Half-Bridge Drivers
Mfr Infineon Technologies
Series µIPM™
Package Tray
Product Status Active
Output Configuration Half Bridge (3)
Applications AC Motors
Interface Logic
Load Type Inductive
Technology UMOS
Rds On (Typ) 310mOhm
Current - Output / Channel 7A
Current - Peak Output 27A
Voltage - Supply 10V ~ 20V
Voltage - Load 200V (Max)
Temperature Range - Operating -40°C ~ 150°C (TJ)
Features Bootstrap Circuit
Fault Protection UVLO
Mounting Type Surface Mount
Package / Case 36-PowerVQFN
Supplier Device Package 36-PQFN (12x12)
Base Product Number IRSM836
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1376874-IRSM836-084MA
Ultra Librarian 3D Model Ultra Librarian IRSM836-084MA CAD Model

Description

The Infineon Technologies 1196323 is a full half-bridge driver from the µIPM™ series. It is designed for power management applications, specifically for AC motors.

  • Temperature Range: -40°C to 150°C
  • Voltage Supply Range: 10V to 20V
  • Package: 36-PowerVQFN
  • Features: Fault Protection
  • Current Output: 7A per channel
