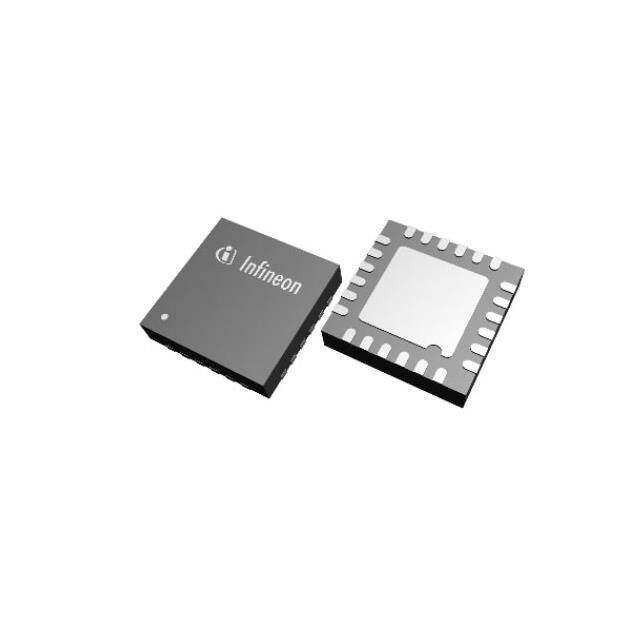

Same model may have multiple batches, images only for reference.

BGAP3D30HE6327XUMA1

Name: BGAP3D30HE6327XUMA1
Brand: Infineon Technologies
SKU: WS1603517
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BGAP3D30HE6327XUMA1
Manufacturer	Infineon Technologies
Catalog	RF Amplifiers
Description	RF AMP CELL 3.1-4.2GHZ 24VFQN
Datasheet	BGAP3D30HE6327XUMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Description

The BGAP3D30H is a stand-alone packaged two-stage pre-driver amplifier. It is designed to be used in a TX lineup of a base station radio unit as a pre-driver for Doherty power amplifier. The BGAP3D30H is equipped with a tunable bias circuitry controlled by external resistor. This enables to optimize balance between linearity and power consumption in the target application. The input is 100Ω differential, the output is 50Ω single-ended.
