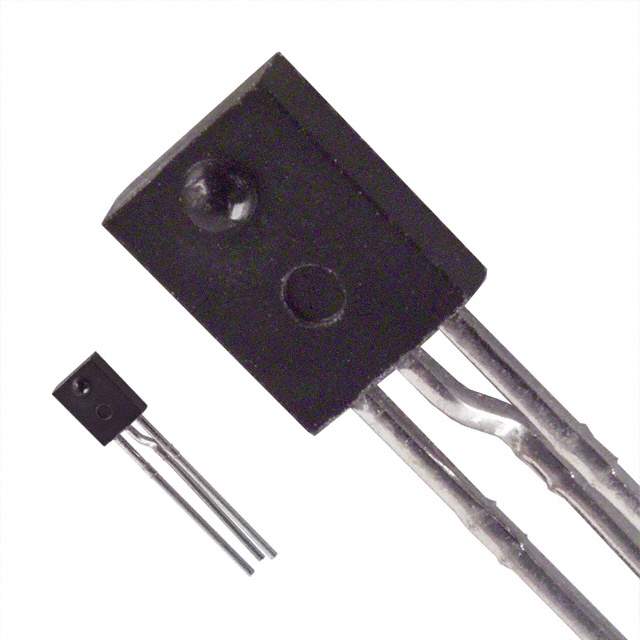

SDP8604-301 Real Image
Same model may have multiple batches, images only for reference.

SDP8604-301

Part No SDP8604-301
Manufacturer Honeywell
Catalog Optical Sensors - Photo Detectors - Logic Output
Description PHOTODETECTOR SCHMITT SIDE LOOK / Optical Sensor 935nm Photo Detector, Logic Output Open Collector Radial, 3 Lead, Side View
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photo Detectors - Logic Output
Mfr Honeywell Sensing and Productivity Solutions
Package Bulk
Product Status Obsolete
Wavelength 935nm
Type Photo Detector, Logic Output
Output Type Open Collector
Package / Case Radial, 3 Lead, Side View
Temperature Range - Operating -40°C ~ 85°C (TA)
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1234998-SDP8604-301
Ultra Librarian 3D Model Ultra Librarian SDP8604-301 CAD Model

Description

The SDP8604-301 from Honeywell Sensing and Productivity Solutions is a photo detector with a logic output.

  • Product Name: SDP8604-301
  • Manufacturer: Honeywell Sensing and Productivity Solutions
  • Package: Radial, 3 lead, side view
  • Operating Temperature: -40°C to 85°C
  • Wavelength: 935nm
  • Output Type: Open Collector
  • Status: Obsolete
