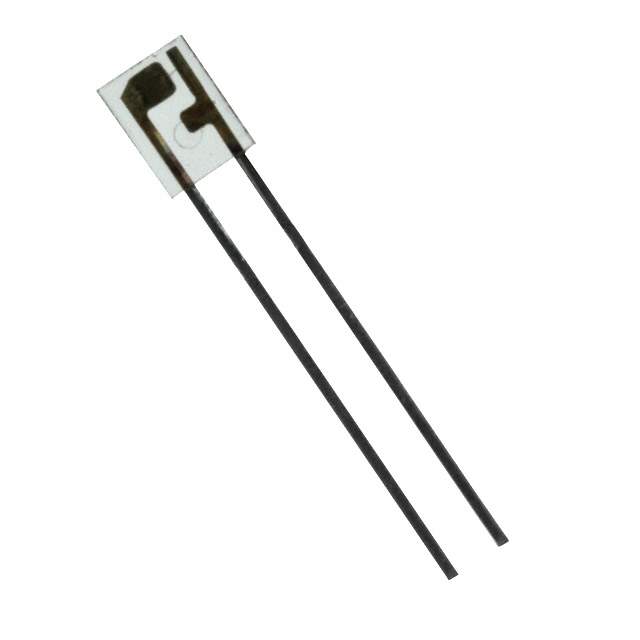

SDP8476-201 Real Image
Same model may have multiple batches, images only for reference.

SDP8476-201

Part No SDP8476-201
Manufacturer Honeywell
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 935NM SIDE VIEW RAD / Phototransistors 935nm Side View Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr Honeywell Sensing and Productivity Solutions
Package Bulk
Product Status Obsolete
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Collector (Ic) (Max) 6 mA
Current - Dark (Id) (Max) 100 nA
Wavelength 935nm
Viewing Angle 20°
Power - Max 100 mW
Mounting Type Through Hole
Orientation Side View
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case Radial
Other Names 480-1959R,480-1959
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 1234924-SDP8476-201
Ultra Librarian 3D Model Ultra Librarian SDP8476-201 CAD Model

Description

This phototransistor is a high-quality electronic component from Honeywell Sensing and Productivity Solutions.

  • Package: Bulk mounted, with a side view orientation
  • Maximum Power Rating: 100 mW
  • Voltage Rating: 30 V
  • Viewing Angle: 20 degrees
  • Wavelength: 935nm
  • Maximum Dark Current: 100 nA
  • Mounting: Through-hole technology
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Status: Obsolete
