Same model may have multiple batches, images only for reference.

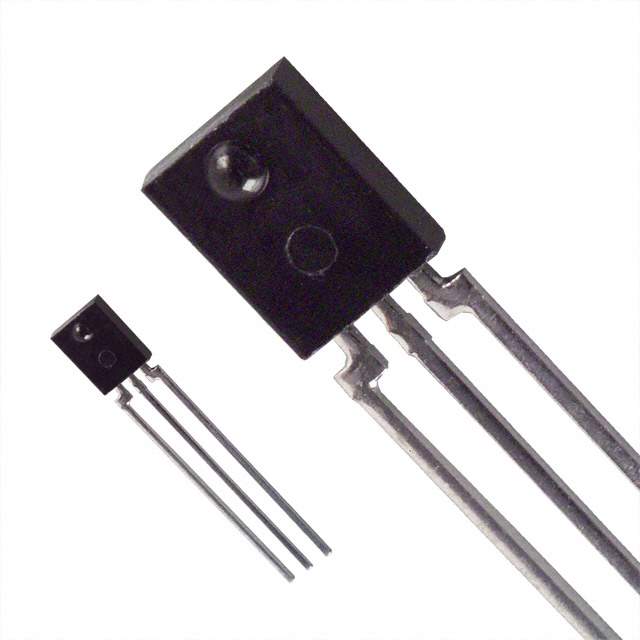

SDP8314-301 Real Image
Same model may have multiple batches, images only for reference.

SDP8314-301

Part No SDP8314-301
Manufacturer Honeywell
Catalog Optical Sensors - Photo Detectors - Logic Output
Description PHOTODETECTOR SCHMITT SIDE VIEW / NoPhotodetector 0.1MHz Optoschmitt 3-Pin Side Looker
Datasheet
SDP8314-301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Part Status Obsolete(EOL)
Wavelength 935nm
Type Photo Detector, Logic Output
Output Type Open Collector
Package Radial, 3 Lead, Side View
Operating Temperature Range -40°C ~ 85°C (TA)
Win Source Part Number 794042-SDP8314-301
Popularity Medium
Supply and Demand Status Limited
Family Name SDP8314
Introduction Date January 01, 2000
Country of Origin Mexico
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SDP8314-301 CAD Model

Description

The SDP8314 from Honeywell Sensing and Productivity Solutions is a photo detector with a logic output.

  • Operating Temperature Range: -40°C to 85°C
  • Wavelength: 935nm
  • Package: Radial, 3 Leads
  • Output Type: Open Collector
  • Series: SDP8314
  • Obsolete: Yes
  • EOL: Yes
  • Cross-Reference: OPL560-OCA, OPL562-OCA, QSE157, QSE159_Q
  • Supply and Demand Status: Limited
  • Country of Origin: Mexico
