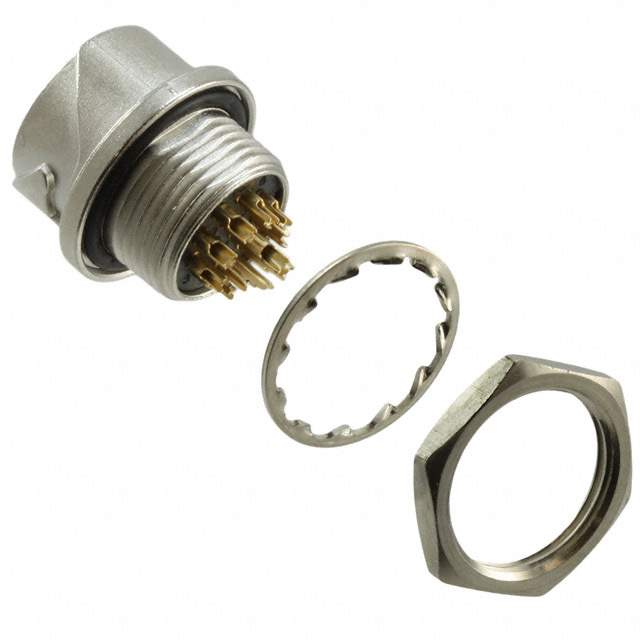

LF10WBR-12S Real Image
Same model may have multiple batches, images only for reference.

LF10WBR-12S

Part No LF10WBR-12S
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 12P SOLDER CUP / 12 Position Circular Connector Receptacle, Female Sockets Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Tray
Connector Type Receptacle, Female Sockets
Number of Positions 12
Shell Size - Insert 10
Mounting Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2A
Voltage Rating 30VAC, 42VDC
Temperature Range - Operating -25°C ~ 85°C
Contact Material Phosphor Bronze
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insert Material Polyphenylene Sulfide (PPS)
Applications Industrial, Telecommunications
Base Product Number LF10WBR
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Part Number LF10WBR12S,HR559,136-1008-6-00,*LF10WBR-12S
Standard Package 60
Win Source Part Number 1334480-LF10WBR-12S
Ultra Librarian 3D Model Ultra Librarian LF10WBR-12S CAD Model

Description

The LF10WBR-12S is a circular connector assembly from Hirose Electric Co Ltd.

  • Type: Receptacle, Female Sockets
  • Positions: 12
  • Fastening Type: Bayonet Lock
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold plating
  • Voltage Rating: 30VAC, 42VDC
  • Ingress Protection: IP67/IP68 - dust tight, waterproof
  • Shell Size Insert: 10
  • Shell Material: Zinc Alloy
  • Shell Finish: Nickel
  • Orientation: Keyed
  • Mounting Feature: Bulkhead - Rear Side Nut
  • Contact Finish Thickness - Mating: 8.00µin (0.203µm)
  • Operating Temperature Range: -25°C ~ 85°C
  • RoHS Compliant: Yes
  • ECCN: EAR99
