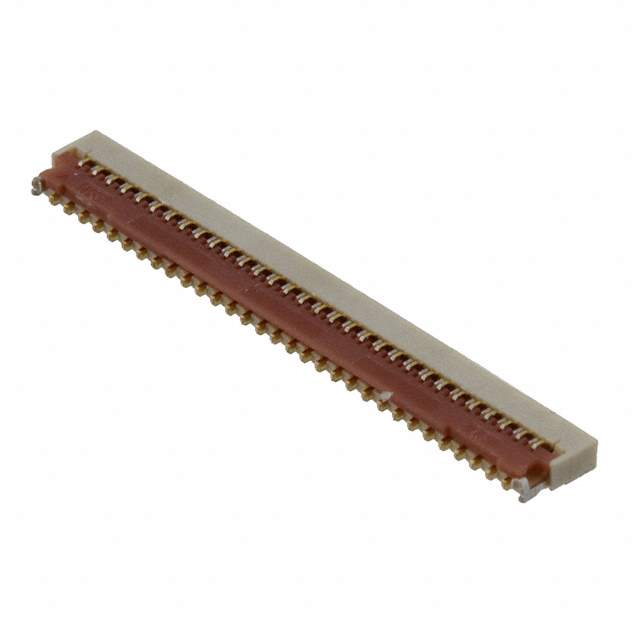

FH36W-61S-0.3SHW(50) Real Image
Same model may have multiple batches, images only for reference.

FH36W-61S-0.3SHW(50)

Part No FH36W-61S-0.3SHW(50)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 61POS 0.30MM R/A
Datasheet
FH36W-61S-0.3SHW(50) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 61
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 HB
Current Rating 0.2A
Contact Finish Thickness 19.7μin (0.50μm)
Housing Color Beige
Actuator Color Brown
Mating Cycles 10
Win Source Part Number 1038817-FH36W-61S-0.3SHW(50)
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian FH36W-61S-0.3SHW(50) CAD Model

Description

The Hirose Electric FH36W-61S-0.3SHW(50) is a connector component that has a zero insertion force (ZIF) feature and is used for FFC and FPC contacts.

  • Supply and Demand: Sufficient
  • Quantity per Package: 5k pcs
  • Housing Color: Beige
