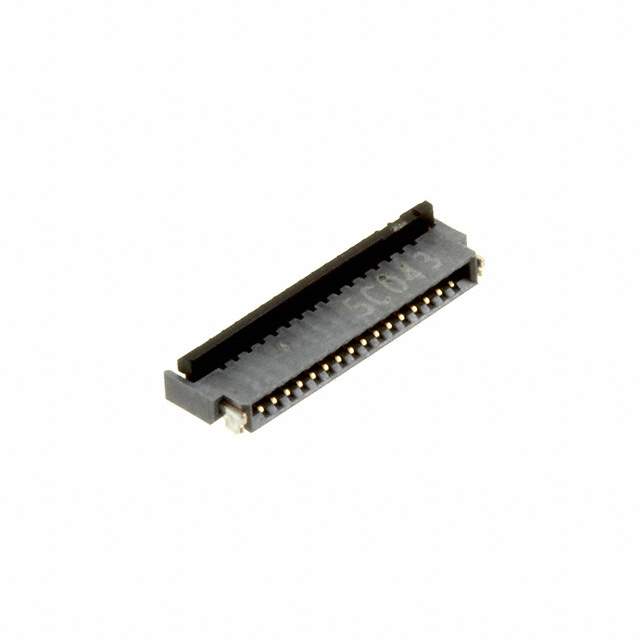

FH34SRJ-16S-0.5SH(50) Real Image
Same model may have multiple batches, images only for reference.

FH34SRJ-16S-0.5SH(50)

Part No FH34SRJ-16S-0.5SH(50)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC/FFC 16POS .5MM
Datasheet
FH34SRJ-16S-0.5SH(50) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 16
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Win Source Part Number 1038781-FH34SRJ-16S-0.5SH(50)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian FH34SRJ-16S-0.5SH(50) CAD Model

Description

The Hirose Electric Co Ltd FH34SRJ-16S-0.5SH(50) is a surface-mount right-angle connector.

  • Zero Insertion Force (ZIF): Yes
  • Positions: 16
  • Pitch: 0.020" (0.50mm)
  • Locking Feature: Rotary lock and backlock
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • FFC/FPC Thickness: 0.30mm
  • Housing Material: Liquid crystal polymer (LCP) which is halogen-free
  • Flammability Rating: UL94 V-0
  • Actuator Material: Polyamide (PA) and nylon
  • Height above board: 0.039" (1.00mm)
  • Mating Cycle: 20
