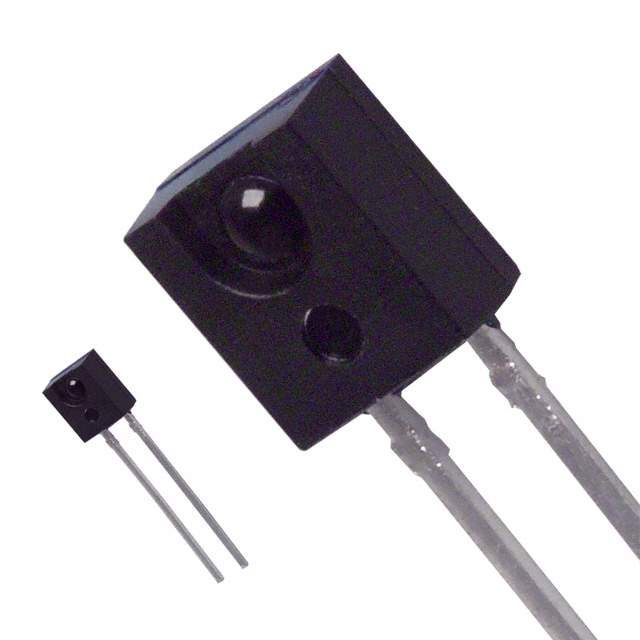

QSE114 Real Image
Same model may have multiple batches, images only for reference.

QSE114

Part No QSE114
Manufacturer Fairchild/ON Semiconductor
Catalog Optical Sensors - Phototransistors
Description IC PHOTOTRANS IR 880NM SIDE-LOOK
Datasheet
QSE114 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Fairchild/ON Semiconductor
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Current - Dark (Id) (Max) 100nA
Wavelength 880nm
Viewing Angle 50°
Maximum Power Dissipation 100mW
Mounting Through Hole
Orientation Side View
Temperature Range - Operating -40°C to 100°C (TA)
Dimension Radial
Win Source Part Number 027067-QSE114
Popularity Medium
Supply and Demand Status Balance
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian QSE114 CAD Model

Description

The QSE114 is a sensor/transducer manufactured by Fairchild/ON Semiconductor.

  • Viewing Angle: 50 degrees
  • Wavelength: 880nm
  • Maximum Power Dissipation: 100mW
  • Temperature Range: -40 to 100 degrees Celsius
  • Supply and Demand: In balance
  • Package: 500
