Same model may have multiple batches, images only for reference.

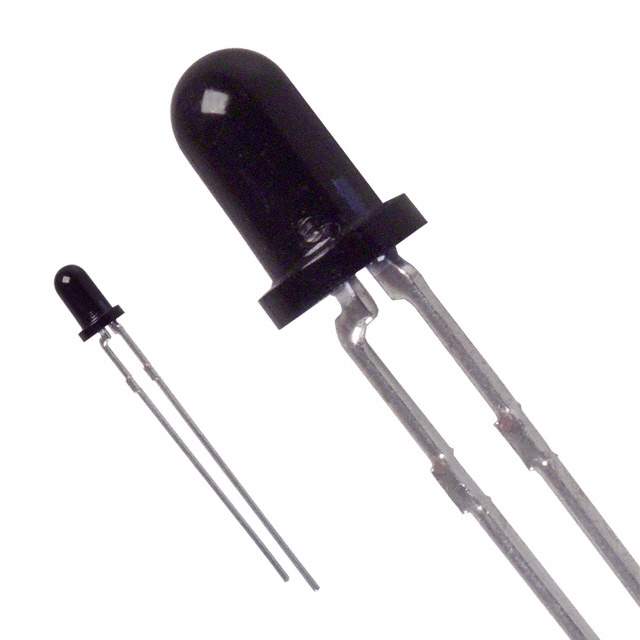

QSC114 Real Image
Same model may have multiple batches, images only for reference.

QSC114

Part No QSC114
Manufacturer Fairchild/ON Semiconductor
Catalog Optical Sensors - Phototransistors
Description IC PHOTOTRANS IR 880NM BLACK 3MM
Datasheet
QSC114 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Fairchild/ON Semiconductor
Packaging Bulk
Status Obsolete(EOL)
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Current - Dark (Id) (Max) 100nA
Wavelength 880nm
Viewing Angle 8°
Maximum Power Dissipation 100mW
Mounting Through Hole
Orientation Top View
Temperature Range - Operating -40°C to 100°C (TA)
Dimension T-1
Win Source Part Number 106188-QSC114
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Hobby & Education
Quantity per package 250
Ultra Librarian 3D Model Ultra Librarian QSC114 CAD Model

Description

The Fairchild/ON Semiconductor 106188-QSC114 is a through-hole mounted sensor/transducer.

  • Viewing Angle: 8 degrees
  • Wavelength: 880nm
  • Maximum Collector-Emitter Breakdown Voltage: 30V
  • Maximum Power Dissipation: 100mW
  • Status: obsolete (EOL)
  • Temperature Range: -40°C to 100°C (TA)
  • Applications: hobby and education applications
  • Packaging: bulk with 250 pieces per package
