Same model may have multiple batches, images only for reference.

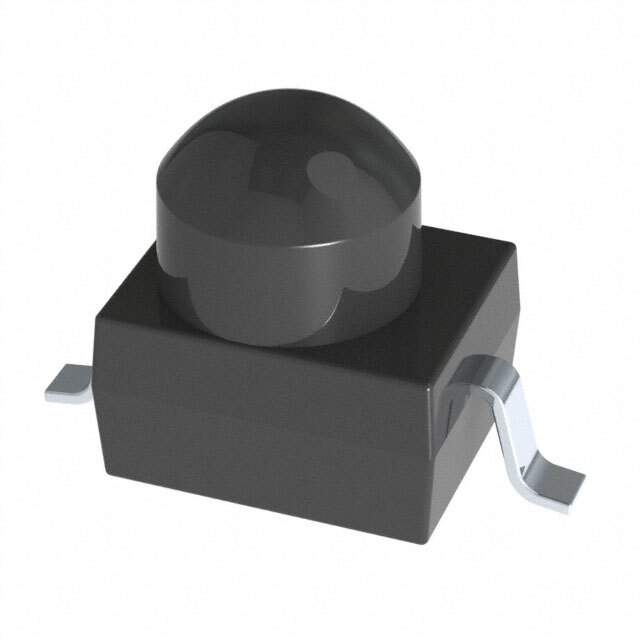

QSB363GR Real Image
Same model may have multiple batches, images only for reference.

QSB363GR

Part No QSB363GR
Manufacturer Fairchild/ON Semiconductor
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANS IR 940NM GW TOPLOOKER
Datasheet
QSB363GR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Voltage - Collector Emitter Breakdown (Maximum) 30V
Current - Collector (Ic) (Maximum) 2mA
Current - Dark (Id) (Maximum) 100nA
Wavelength 940nm
Viewing Angle 24°
Power - Max 75mW
Mounting SMD
Orientation Top View
Operating Temperature Range -40°C ~ 85°C (TA)
Package 2-SMD, Gull Wing
Manufacturer Homepage www.fairchildsemi.com
Win Source Part Number 733570-QSB363GR
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Family Name QSB363
Introduction Date October 05, 2001
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian QSB363GR CAD Model

Description

This electronic component by Fairchild/ON Semiconductor has a part number of 733570-QSB363GR and is packaged in a reel - TR.

  • Temperature Range: -40°C to 85°C (TA)
  • Power Capacity: 75mW
  • Package: 2-SMD, Gull Wing
  • Orientation: Top view
  • Mounting: SMD
  • Viewing Angle: 24°
  • Family Name: QSB363
  • Wavelength: 940nm
  • Categories: Sensors and Transducers
  • Current - Collector (Ic) (Maximum): 2mA
  • Voltage - Collector Emitter Breakdown (Maximum): 30V
  • Current - Dark (Id) (Maximum): 100nA
  • Estimated EOL Date: 2023
  • Halogen-Free: Compliant
  • Pieces per Package: 1k
