Same model may have multiple batches, images only for reference.

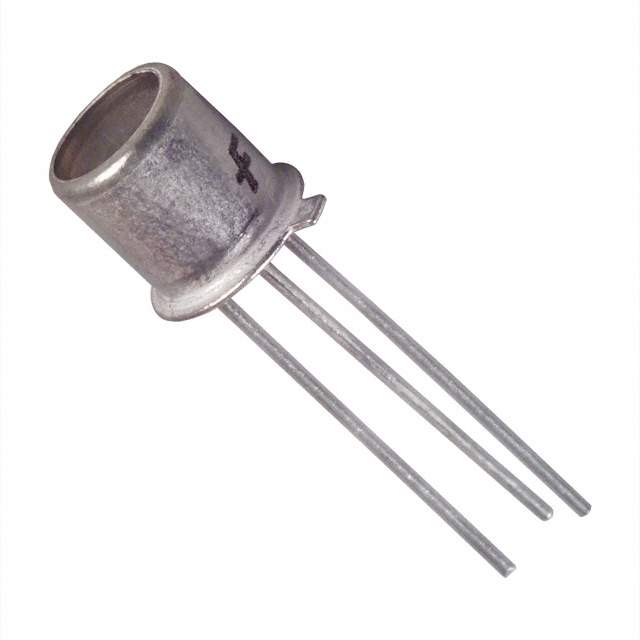

L14G2 Real Image
Same model may have multiple batches, images only for reference.

L14G2

Part No L14G2
Manufacturer Fairchild/ON Semiconductor
Catalog Optical Sensors - Phototransistors
Description DETECTOR/TRANSISTOR PHOTO TO-18
Datasheet
L14G2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Fairchild/ON Semiconductor
Status Obsolete(EOL)
VCEO Maximum Collector-Emitter Breakdown Voltage 45V
Current - Dark (Id) (Max) 100nA
Wavelength 880nm
Viewing Angle 20°
Maximum Power Dissipation 300mW
Mounting Through Hole
Orientation Top View
Temperature Range - Operating -65°C to 125°C (TA)
Dimension TO-206AA, TO-18-3 Metal Can
Win Source Part Number 1051178-L14G2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian L14G2 CAD Model

Description

The L14G2 is a photodiode from Fairchild/ON Semiconductor that has a wavelength of 880nm and a viewing angle of 20 degrees.

  • Applications: sensors and transducers applications
  • Maximum Current Collector: -
  • VCEO maximum collector-emitter breakdown voltage: 45V
  • Maximum Power Dissipation: 300mW
  • Temperature Range: -65 to 125 degrees Celsius
  • Package: TO-206AA, TO-18-3 metal can
  • Status: Obsolete (EOL)
  • Supply and Demand: balanced
