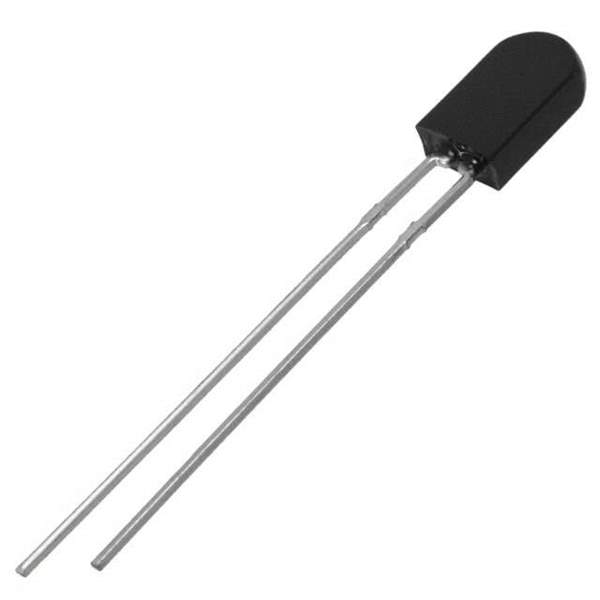

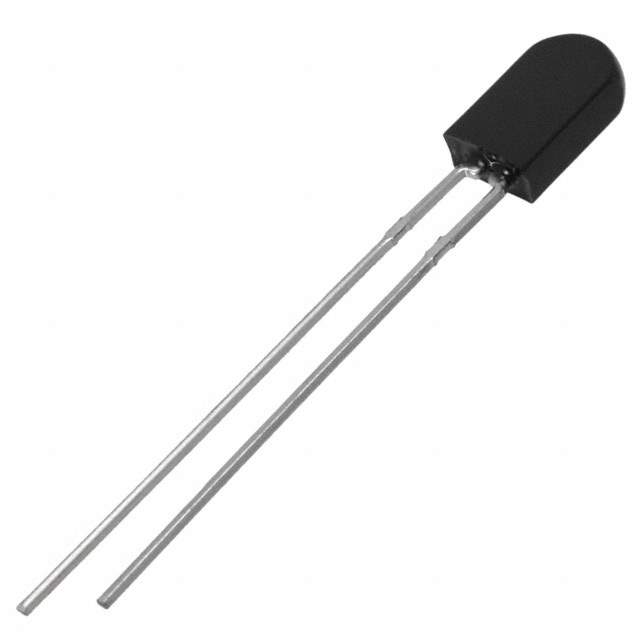

PT534-6B Real Image
Same model may have multiple batches, images only for reference.

PT534-6B

Part No PT534-6B
Manufacturer Everlight Electronics Co Ltd
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR 5MM BLACK RAD
Datasheet
PT534-6B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Everlight Electronics Co Ltd
Packaging Bulk
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Maximum Current Collector 20mA
Current - Dark (Id) (Max) 100nA
Wavelength 980nm
Mounting Through Hole
Orientation Top View
Temperature Range - Operating -25°C to 125°C (TA)
Dimension Radial, 5mm Dia (T 1 3/4)
Win Source Part Number 210314-PT534-6B
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PT534-6B CAD Model

Description

The Everlight Electronics Co Ltd 210314-PT534-6B is a sensor/transducer that is currently active in the market.

  • Popularity: medium
  • Supply and Demand: not facing any shortage
  • Mounting: through-hole
  • Temperature Range: -25°C to 125°C
  • Maximum Current Collector: 20mA
  • VCEO maximum collector-emitter breakdown voltage: 30V
  • Manufacturer: Everlight Electronics Co Ltd
