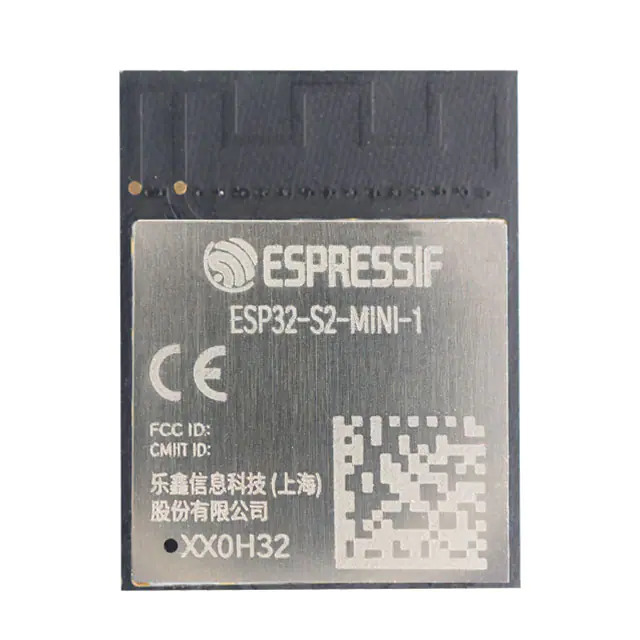

ESP32-S2-MINI-1-N4 Espressif
Same model may have multiple batches, images only for reference.

ESP32-S2-MINI-1-N4

Part No ESP32-S2-MINI-1-N4
Manufacturer Espressif
Catalog RF Transceiver Modules
Description SMD MODULE W/PCB ANTENNA / WiFi 802.11b/g/n Transceiver Module 2.412GHz ~ 2.484GHz PCB Trace Surface Mount
Datasheet
ESP32-S2-MINI-1-N4 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Espressif Systems
Series ESP32
Package Strip
Product Status Active
RF Family/Standard WiFi
Protocol 802.11b/g/n
Modulation -
Frequency 2.412GHz ~ 2.484GHz
Data Rate 150Mbps
Power - Output 19.5dBm
Sensitivity -97dBm
Serial Interfaces ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB
Antenna Type PCB Trace
Utilized IC / Part ESP32-S2
Memory Size 128kB ROM, 320kB SRAM
Voltage - Supply 3V ~ 3.6V
Current - Receiving 63mA ~ 68mA
Current - Transmitting 160mA ~ 310mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 56-VFQFN Exposed Pad
Base Product Number ESP32-S2
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1354347-ESP32-S2-MINI-1-N4
Ultra Librarian 3D Model Ultra Librarian ESP32-S2-MINI-1-N4 CAD Model

Description

The ESP32-S2-MINI-1-N4 is an RF transceiver module from Espressif Systems. It is a part of the ESP32-S2 series and operates in the 2.412GHz to 2.484GHz frequency range.

  • Package / Case: 56-VFQFN Exposed Pad
  • Protocol: WiFi
  • Data Rate: 150Mbps
  • Power Output: 19.5dBm
  • Sensitivity: -97dBm
  • Serial Interfaces: ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB
