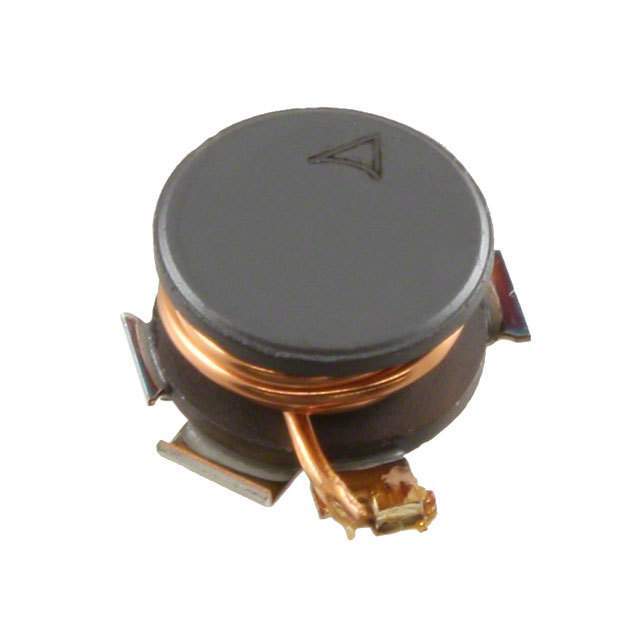

B82464A4682M000 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B82464A4682M000

Part No B82464A4682M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 6.8UH 3.5A 27 MOHM SMD / Inductor Power Wirewound 6.8uH 20% 100KHz Ferrite 3.5A 0.027Ohm DCR Automotive T/R
Datasheet
B82464A4682M000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Series B82464A4
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 6.8μH
Tolerance ±20%
Current Rating 3.5A
Current - Saturation 4.7A
Shielding Unshielded
DC Resistance (DCR) 27 mOhm Max
Frequency - Self Resonant 100kHz
Ratings AEC-Q200
Operating Temperature Range -55°C ~ 150°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.409" L x 0.409" W (10.40mm x 10.40mm)
Height - Seated (Maximum) 0.189" (4.80mm)
Win Source Part Number 769572-B82464A4682M000
Popularity Medium
Supply and Demand Status Limited
Family Name B82464A4
Introduction Date March 31, 2008
ECCN EAR99
Country of Origin China, Germany, Hungary
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian B82464A4682M000 CAD Model

Description

The B82464A4682M000 is a wirewound inductor manufactured by EPCOS (TDK).

  • Inductance: 6.8μH
  • Tolerance: ±20%
  • Current Rating: 3.5A
  • Shielding: Unshielded
  • Operating Temperature Range: -55°C to 150°C
  • Current Saturation: 4.7A
  • Rating: AEC-Q200
  • Supply and Demand Status: Limited
