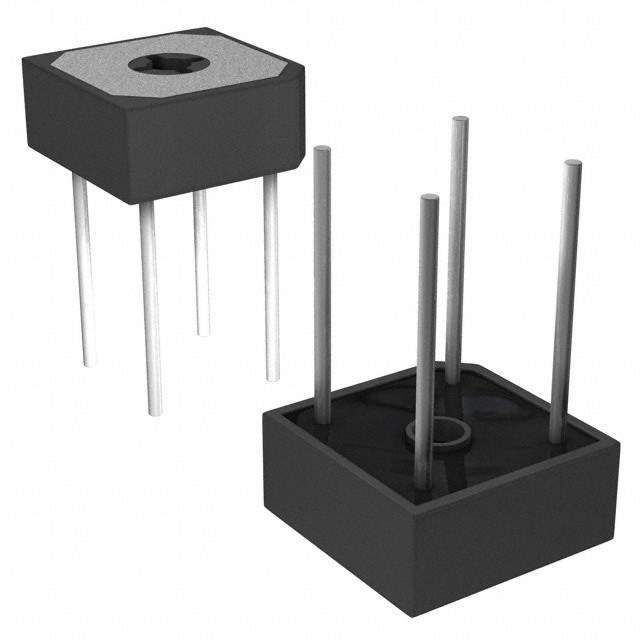

The PBPC807 from Diodes Incorporated is a high-quality single-phase bridge rectifier designed for efficient and reliable performance in a variety of applications. This robust component is ideal for AC to DC conversion in power supply units, adaptors, lighting applications, and other electronic devices that require rectification processes.

Key Features

• High Current Rating: The PBPC807 is capable of handling a maximum repetitive peak reverse voltage of 1000V, with an average rectified forward current of 8A at TL (terminal lead) = 75°C. This makes it suitable for moderate to high power requirements.
• High Surge Current Capability: With a forward surge current of 200A, this bridge rectifier is capable of withstanding high surge conditions, ensuring reliability and longevity in your circuit.
• Low Forward Voltage Drop: The low forward voltage drop feature minimizes power loss and improves efficiency, making the PBPC807 an energy-efficient choice for your power conversion needs.
• Isolation Voltage: This component offers an isolation voltage of 2500V, which provides a high level of protection against electrical shocks and ensures the safety of the device during operation.

Package and Mounting

The PBPC807 is encased in a PBPC package, which is known for its durability and ease of mounting. The package is designed to optimize heat dissipation, which is crucial for maintaining performance and extending the service life of the bridge rectifier.

Applications

Thanks to its robust design and reliable performance, the PBPC807 is suitable for a wide range of applications. It is commonly used in:

• Switching power supplies
• Adaptors and battery chargers
• Home appliances
• Office and industrial automation systems
• Telecommunication devices

The Diodes Incorporated PBPC807 bridge rectifier is a testament to the company's commitment to providing high-quality, reliable components for the electronics industry. Whether you are designing a new power supply or looking to upgrade an existing system, the PBPC807 offers the performance and durability you need.
