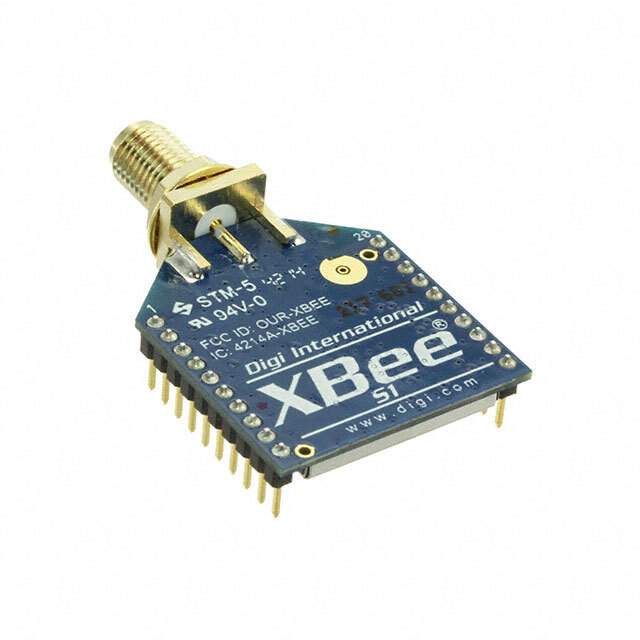

XB24-ASI-001 Real Image
Same model may have multiple batches, images only for reference.

XB24-ASI-001

Part No XB24-ASI-001
Manufacturer Digi International
Catalog RF Receivers
Description RX TXRX MOD 802.15.4 RP-SMA SMD / 802.15.4 Transceiver Module 2.4GHz Antenna Not Included, RP-SMA Surface Mount
Datasheet
XB24-ASI-001 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Digi
Series XBee® 802.15.4
Package Bulk
Product Status Obsolete
RF Family/Standard 802.15.4
Modulation DSSS
Frequency 2.4GHz
Data Rate 250kbps
Power - Output 0dBm
Sensitivity -92dBm
Serial Interfaces UART
Antenna Type Antenna Not Included, RP-SMA
Utilized IC / Part EM357
Voltage - Supply 2.8V ~ 3.4V
Current - Receiving 50mA
Current - Transmitting 45mA
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Other Names 602-1469,XB24-ASI-001-ND
Standard Package 25
Win Source Part Number 1105155-XB24-ASI-001
Ultra Librarian 3D Model Ultra Librarian XB24-ASI-001 CAD Model

Description

The XB24-ASI-001 electronic component is a product manufactured by Digi.

  • Product Type: RF/IF and RFID RF transceiver module and modem
  • Series: XBee 802.15.4
  • Package: bulk
  • Standard Package: 25
  • Mounting: surface-mount device (SMD)
  • Frequency: 2.4GHz
  • Data Rate: 250kbps
  • Sensitivity: -92dBm
  • Power Output: 0dBm
  • IC/Part: EM357
  • Modulation: DSSS
  • Serial Interface: UART
  • Temperature Range: -40°C to 85°C
