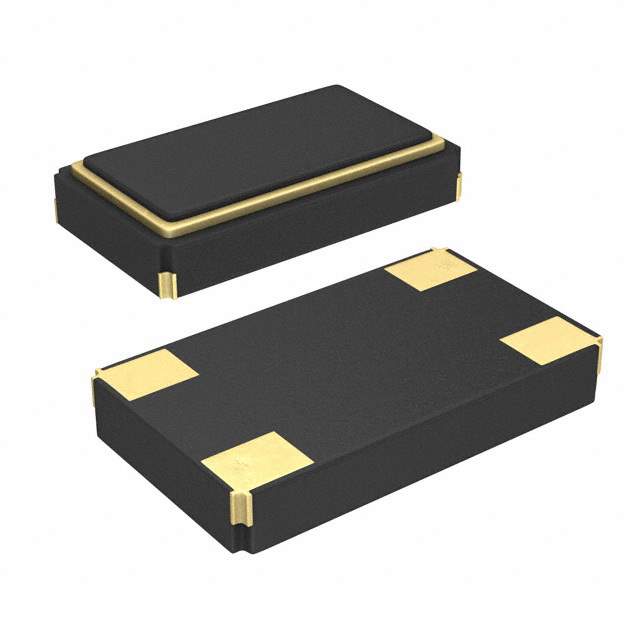

406C35D24M00000 Real Image
Same model may have multiple batches, images only for reference.

406C35D24M00000

Part No 406C35D24M00000
Manufacturer CTS-Frequency Controls
Catalog Crystals
Description CRYSTAL 24.0000MHZ 18PF SMD / 24 MHz ±30ppm Crystal 18pF 40 Ohms 4-SMD, No Lead
Datasheet
406C35D24M00000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr CTS-Frequency Controls
Series 406
Package Tape & Reel
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.236" L x 0.138" W (6.00mm x 3.50mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names CTX858TR,CTX858DKR,CTX858CT
Standard Package 1,000
Win Source Part Number 1038540-406C35D24M00000
Ultra Librarian 3D Model Ultra Librarian 406C35D24M00000 CAD Model

Description

This MHz crystal by CTS-Frequency Controls is a fantastic choice for your electronic projects. It is a part of the 406 series, and has a frequency of 24 MHz.

  • ESR (Equivalent Series Resistance): 40 Ohms
  • Frequency stability: ±50ppm
  • Frequency tolerance: ±30ppm
  • Load capacitance: 18pF
  • Operating mode: fundamental
  • Standard package: 1,000
  • Package/Case: 4-SMD, no lead
  • Temperature range for operating: -20°C ~ 70°C
  • Dimension: 0.236" L x 0.138" W (6.00mm x 3.50mm)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Manufacturer: CTS-Frequency Controls
