Same model may have multiple batches, images only for reference.

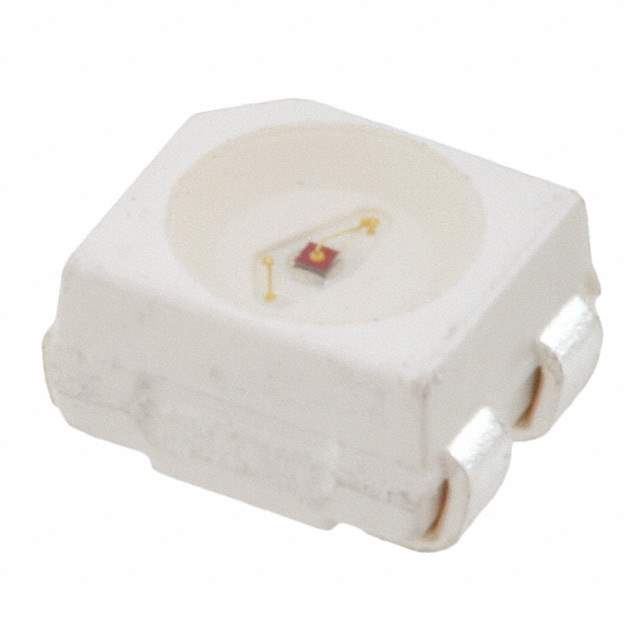

HSME-A401-P4PM1 Real Image
Same model may have multiple batches, images only for reference.

HSME-A401-P4PM1

Part No HSME-A401-P4PM1
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED GREEN CLEAR 4PLCC SMD / Green 567nm LED Indication - Discrete 2.2V 4-PLCC
Datasheet
HSME-A401-P4PM1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Broadcom Limited
Package Tape & Reel
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 78.75mcd
Lens Style Round with Flat Top
Lens Size 2.20mm Dia
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 50mA
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 567nm
Wavelength - Peak 568nm
Package / Case 4-PLCC
Supplier Device Package 4-PLCC
Dimension 3.20mm L x 2.80mm W
Height (Max) 2.10mm
Base Product Number HSME-A401
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names HSME-A401-P4PM1-ND,516-3152-1,516-3152-2,516-3152-6
Standard Package 2,000
Win Source Part Number 1157238-HSME-A401-P4PM1
Ultra Librarian 3D Model Ultra Librarian HSME-A401-P4PM1 CAD Model

Description

The HSME-A401-P4PM1 from Broadcom Limited is a green LED indication device designed for use in optoelectronics.

  • Viewing Angle: 120 degrees
  • Millicandela Rating: 78.75mcd
  • Packaging: Tape and reel
  • Standard Package Quantity: 2,000
  • Mounting: SMD (SMT)
  • Supplier Device Package: 4-PLCC
  • Height: 2.10mm
  • Dimension: 3.20mm L x 2.80mm W
  • Halogen-Free: Not compliant
  • ECCN: EAR99
  • REACH: Not affected
  • HTSUS Code: 8541.41.0000
  • Base Product Number: HSME-A401
