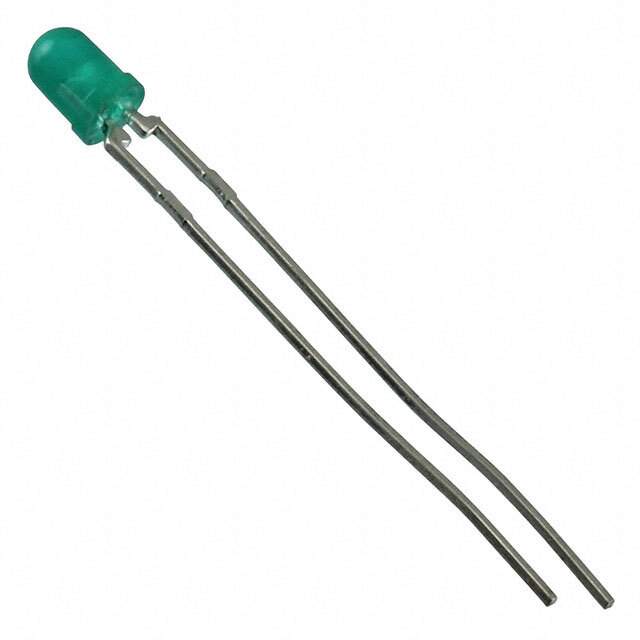

HLMP-1503-C0002 Real Image
Same model may have multiple batches, images only for reference.

HLMP-1503-C0002

Part No HLMP-1503-C0002
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED GREEN DIFFUSED T-1 T/H / Green 569nm LED Indication - Discrete 2.1V Radial
Datasheet
HLMP-1503-C0002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Broadcom Limited
Package Tape & Reel (TR),Cut Tape (CT)
Color Green
Configuration Standard
Lens Color Green
Lens Transparency Diffused
Millicandela Rating 2.6mcd
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 10mA
Viewing Angle 60°
Mounting Type Through Hole
Wavelength - Dominant 569nm
Wavelength - Peak 565nm
Package / Case Radial
Supplier Device Package T-1 (3mm)
Height (Max) 6.35mm
Base Product Number HLMP-1503
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 516-3190-2,516-3190-1,HLMP-1503-C0002-ND
Standard Package 1,800
Win Source Part Number 1216257-HLMP-1503-C0002
Ultra Librarian 3D Model Ultra Librarian HLMP-1503-C0002 CAD Model

Description

The HLMP-1503-C0002 is a green LED indication discrete component from Broadcom Limited.

  • Viewing Angle: 60 degrees
  • Millicandela Rating: 2.6mcd
  • Voltage-Forward (Vf): 2.1V
  • Wavelength-Dominant: 569nm
  • Lens: Diffused
  • Lens Style: Round domed top
  • Mounting: Through hole
  • Package/Case: Radial
  • Supplier Device Package: T-1 (3mm)
  • Height: 6.35mm
  • Packaging: Available in tape and reel (TR) and cut tape (CT) packaging
  • Configuration: Standard configuration component
  • Application: Various optoelectronics applications
