Same model may have multiple batches, images only for reference.

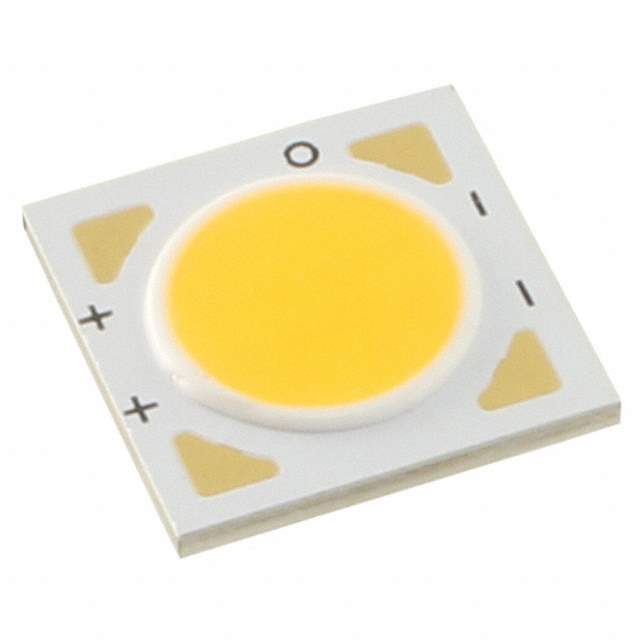

BXRE-27E0800-B-03 Real Image
Same model may have multiple batches, images only for reference.

BXRE-27E0800-B-03

Part No BXRE-27E0800-B-03
Manufacturer Bridgelux
Catalog LED Lighting - COBs, Engines, Modules
Description LED ARRAY 2700K 800LM WARM WHT / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Datasheet
BXRE-27E0800-B-03 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Bridgelux
Series V8 Array
Package Tray
Product Status Obsolete
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 705lm (Typ)
Current - Test 350mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 17.8V
Lumens/Watt @ Current - Test 113 lm/W
Current - Max 700mA
CRI (Color Rendering Index) 80
Viewing Angle 120°
Dimension 12.50mm L x 12.50mm W
Height 1.70mm
Light Emitting Surface (LES) 8.10mm Dia
Lens Type Flat
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 976-1184
Standard Package 600
Win Source Part Number 1200227-BXRE-27E0800-B-03
Ultra Librarian 3D Model Ultra Librarian BXRE-27E0800-B-03 CAD Model

Description

The Bridgelux 1200227-BXRE-27E0800-B-03 is a V8 Array series product.

  • Series: V8 Array
  • Light Color: White and Warm
  • Shape: Square
  • Package: Tray
  • Standard Package: 600
  • Current - Max: 700mA
  • Configuration: Square
  • Viewing Angle: 120°
  • Voltage - Forward (Vf) (Typ): 17.8V
  • Lumens/Watt @ Current - Test: 113 lm/W
  • Status: Obsolete
