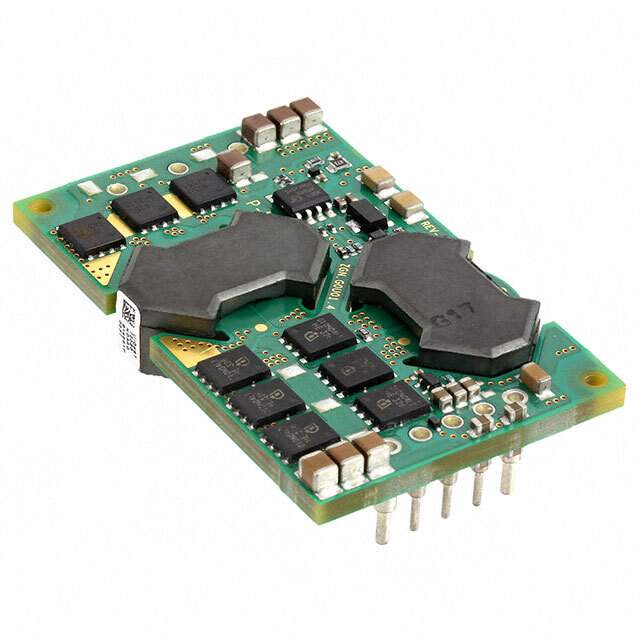

Same model may have multiple batches, images only for reference.

UIQ48T72033-NDA0G

Name: UIQ48T72033-NDA0G
Brand: Bel Power Solutions
SKU: 1016413
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UIQ48T72033-NDA0G
Manufacturer	Bel Power Solutions
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 240W / Isolated Module DC DC Converter 1 Output 3.3V 72A 18V - 75V Input
Datasheet	UIQ48T72033-NDA0G Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Bel Power Solutions
Series	UIB (240W)
Package	Tray
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	3.3V
Current - Output (Max)	72A
Power (Watts)	240 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	91%
Mounting Type	Through Hole
Package / Case	8-DIP Module, 1/4 Brick
Dimension	2.30" L x 1.45" W x 0.44" H (58.4mm x 36.8mm x 11.2mm)
Control Features	Enable, Active Low
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	2266-UIQ48T72033-NDA0G,179-2772
Standard Package	25
Win Source Part Number	1016413-UIQ48T72033-NDA0G
Ultra Librarian 3D Model	Ultra Librarian UIQ48T72033-NDA0G CAD Model

Alternative Products

Description

The 1016413-UIQ48T72033-NDA0G is a DC-DC converter from Bel Power Solutions with a power of 240W and an efficiency of 91 percent.

Voltage Isolation: 2.25 kV
Maximum Current: 72A
Voltage Input Range: 18V to 75V
Voltage Output: 3.3V
Mounting Type: Through-hole
Package/Case: 8-DIP Module, 1/4 Brick
Operating Temperature: -40°C to 85°C
Dimension: 2.30 inches in length, 1.45 inches in width, and 0.44 inches in height.
Status: It is also obsolete.
