Same model may have multiple batches, images only for reference.

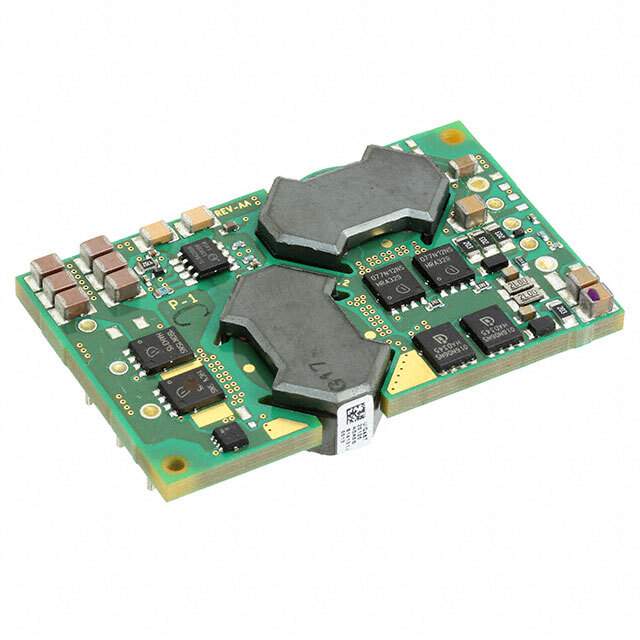

UIQ48T20120-NDA0G Real Image
Same model may have multiple batches, images only for reference.

UIQ48T20120-NDA0G

Part No UIQ48T20120-NDA0G
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 12V 240W
Datasheet
UIQ48T20120-NDA0G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Bel-Power-Solutions
Series UIB
Packaging Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 20A
Power (Watts) - Manufacture Series 240W
Voltage - Isolation 2.25kV (2250V)
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Mounting Style Through Hole
Package 8-DIP Module, 1/4 Brick
Size / Dimension 2.30" L x 1.45" W x 0.44" H (58.4mm x 36.8mm x 11.2mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 92.5%
Power (Watts) - Max 240W
Win Source Part Number 213719-UIQ48T20120-NDA0G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 25
Ultra Librarian 3D Model Ultra Librarian UIQ48T20120-NDA0G CAD Model

Description

The Bel-Power-Solutions UIB DC DC Converter is a high-quality power supply designed for use in electronic circuits.

  • Safety Features: remote on/off, OCP, OTP, OVP, and UVLO
  • Voltage-Isolation: 2.25kV
