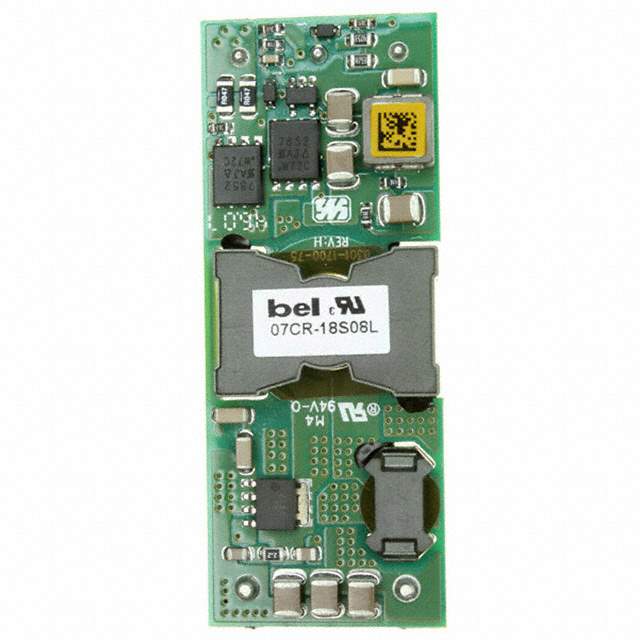

Same model may have multiple batches, images only for reference.

07CR-18S08LG

Name: 07CR-18S08LG
Brand: Bel Fuse Inc.
SKU: 1025629
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	07CR-18S08LG
Manufacturer	Bel Fuse Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 8V 140W / Isolated Module DC DC Converter 1 Output 8V 18A 36V - 60V Input
Datasheet	07CR-18S08LG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Bel Fuse Inc.
Series	07CR Cimarron (140W)
Package	Tray
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	60V
Voltage - Output 1	8V
Current - Output (Max)	18A
Power (Watts)	140 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	95%
Mounting Type	Through Hole
Package / Case	5-DIP Module, 1/8 Brick
Dimension	2.30" L x 0.90" W x 0.41" H (58.4mm x 22.9mm x 10.4mm)
Control Features	Enable, Active Low
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	507-1120
Standard Package	18
Win Source Part Number	1025629-07CR-18S08LG
Ultra Librarian 3D Model	Ultra Librarian 07CR-18S08LG CAD Model

Alternative Products

Description

The Bel Fuse Inc. 07CR-18S08LG is a 140 W isolated module DC-DC converter designed for use in power supplies-board mount applications.

Feature: Remote On/Off, OCP, OTP, UVLO
Package: Tray
Voltage Isolation: 1.5 kV
Current Output: 18 A
Input Voltage: 36 V to 60 V
Output Voltage: 8 V
Efficiency: 95%
Mounting Type: Through Hole
Temperature Range: -40°C to 85°C
ECCN: EAR99
Package / Case: 5-DIP Module, 1/8 Brick
Status: Obsolete
RoHS: Not RoHS Compliant
