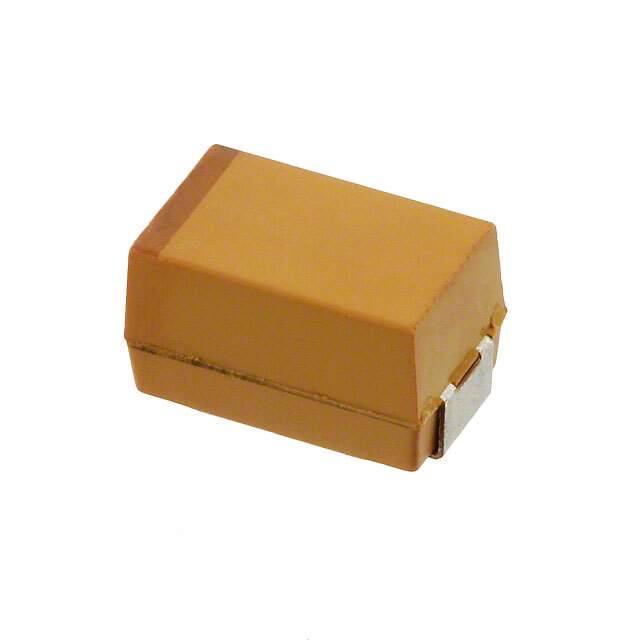

Same model may have multiple batches, images only for reference.

TCJY226M025R0070

Name: TCJY226M025R0070
Brand: AVX Corp/Kyocera Corp
SKU: 1209530
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TCJY226M025R0070
Manufacturer	AVX Corp/Kyocera Corp
Catalog	Tantalum - Polymer Capacitors
Description	CAP TANT POLY 22UF 25V 2917 / 22 µF Molded Tantalum Polymer Capacitor 25 V 2917 (7343 Metric) 70mOhm @ 100kHz
Datasheet	TCJY226M025R0070 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Tantalum - Polymer Capacitors
Mfr	KYOCERA AVX
Series	TCJ
Package	Tape & Reel
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	25 V
Type	Molded
ESR (Equivalent Series Resistance)	70mOhm @ 100kHz
Temperature Range - Operating	-55°C ~ 105°C
Lifetime @ Temp.	2000 Hrs @ 105°C
Mounting	SMD (SMT)
Package / Case	2917 (7343 Metric)
Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)	0.079" (2.00mm)
Manufacturer Size Code	Y
Features	General Purpose
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0050
Other Names	478-9499-1,478-9499-6,478-9499-2
Standard Package	1,000
Win Source Part Number	1209530-TCJY226M025R0070
Ultra Librarian 3D Model	Ultra Librarian TCJY226M025R0070 CAD Model

Alternative Products

Description

The TCJ series capacitor, TCJY226M025R0070, is a tantalum-polymer capacitor with a capacitance of 22 µF and a voltage rating of 25V.

Capacitance: 22 µF
Voltage Rating: 25V
Tolerance: ±20%
ESR: 70mOhm @ 100kHz
Package Type: Tape and Reel
Mounting Type: Surface Mountable
Package/Case: 2917 (7343 Metric)
Temperature Range: -55℃ to 105℃
Dimensions: 0.287" L x 0.169" W (7.30mm x 4.30mm)
Application: General-purpose
