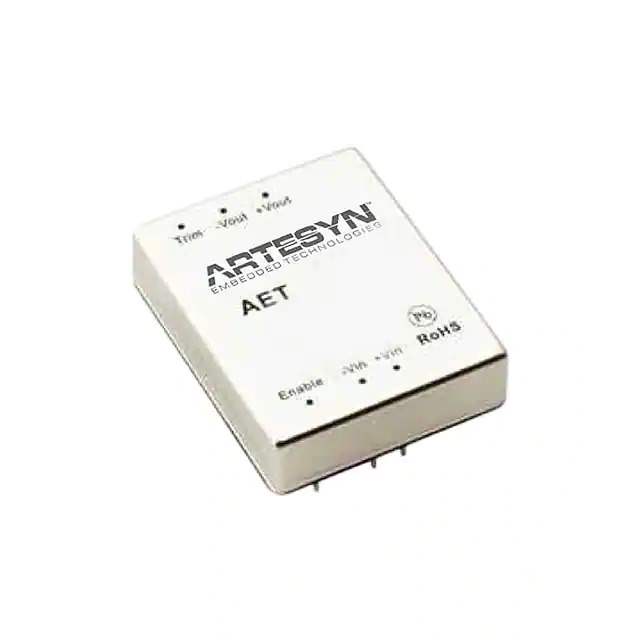

Same model may have multiple batches, images only for reference.

AET01B36-L

Name: AET01B36-L
Brand: Artesyn Embedded Technologies
SKU: 846820
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	AET01B36-L
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 20W
Datasheet	AET01B36-L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Artesyn Embedded Technologies
Series	AET (20W)
Package	Bulk
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Current - Output (Max)	1.67A
Power (Watts)	20 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OVP, SCP
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	85%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	2.00" L x 1.60" W x 0.48" H (50.8mm x 40.6mm x 12.2mm)
Base Product Number	AET01B
Standard Package	80 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	846820-AET01B36-L
Ultra Librarian 3D Model	Ultra Librarian AET01B36-L CAD Model

Alternative Products

Description

The AET01B36-L is a 20W isolated module power supply from Artesyn Embedded Technologies.

Series: AET series
Features: remote on/off, overvoltage protection (OVP), and short circuit protection (SCP)
Dimensions: 2.00" L x 1.60" W x 0.48" H
Applications: ITE (commercial) applications
Power Output: 20W
Isolation Voltage: 1.5 kV
Output: single output
Maximum Current: 1.67A
Input Voltage Range: 18V to 75V
Output Voltage: 12V
Efficiency: 85%
Mounting: through-hole mounting
Operating Temperature Range: -40°C to 71°C
ECCN: EAR99 compliant
