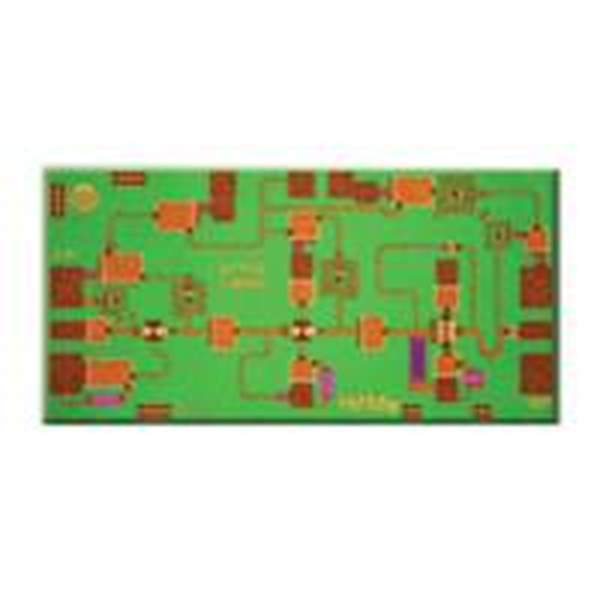

The HMC342 from Analog Devices Inc. is a high-quality, passive double-balanced mixer designed to address a wide range of RF and IF applications. This mixer is part of the Hittite Microwave Corporation product line, which is known for its high-performance RF, microwave, and millimeter-wave components.

Key Features

• Frequency Range: The HMC342 operates over a broad frequency range, making it versatile for various applications. It can handle RF frequencies from 5 to 10 GHz and LO frequencies from 5 to 10 GHz, while the IF frequency ranges from DC to 3 GHz.
• Conversion Loss: With a typical conversion loss of 9 dB, this mixer maintains a balance between conversion efficiency and signal fidelity.
• LO/RF Isolation: The device offers excellent isolation between the LO and RF ports, typically 25 dB, which minimizes signal leakage and preserves the integrity of the signal processing.
• Input Power: The HMC342 can handle a maximum input power of +13 dBm, ensuring it can accommodate a range of signal strengths.
• Package: Packaged in a compact, hermetically sealed module, the HMC342 is designed for easy integration into a variety of systems.

Applications

The versatile nature of the HMC342 makes it suitable for a wide array of applications, including:

• Point-to-point and point-to-multipoint radios
• Test equipment and sensors
• Military and space
• Wireless infrastructure

Quality and Reliability

Analog Devices Inc. is committed to providing products that meet the highest standards of quality and reliability. The HMC342 is manufactured with this commitment in mind, ensuring that it performs consistently across various environmental conditions and usage scenarios.

For detailed specifications, application notes, and further information, engineers and system designers are encouraged to consult the HMC342 datasheet available on the Analog Devices Inc. website or contact their technical support for personalized assistance.
