The HMC327MS8GETR is a high-performance, passive double-balanced mixer from Analog Devices Inc., a leading global semiconductor company specializing in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This mixer is designed to provide excellent local oscillator (LO) to radio frequency (RF) and intermediate frequency (IF) isolation due to optimized balun structures, making it an ideal choice for a wide range of wireless applications such as cellular/4G infrastructure, ISM, and satellite communications.

Key Features

• Frequency Range: The HMC327MS8GETR operates over a broad frequency range, with the RF and LO frequencies from 3 GHz to 4 GHz and the IF frequency from DC to 1 GHz, allowing for versatile use in various communication systems.
• Conversion Loss: It features a low conversion loss, which increases the overall efficiency of the signal conversion process, thereby improving the performance of the entire communication system.
• LO/RF Isolation: The device offers excellent LO to RF isolation, which minimizes the leakage of the LO signal into the RF path, a critical parameter for maintaining signal integrity in mixers.

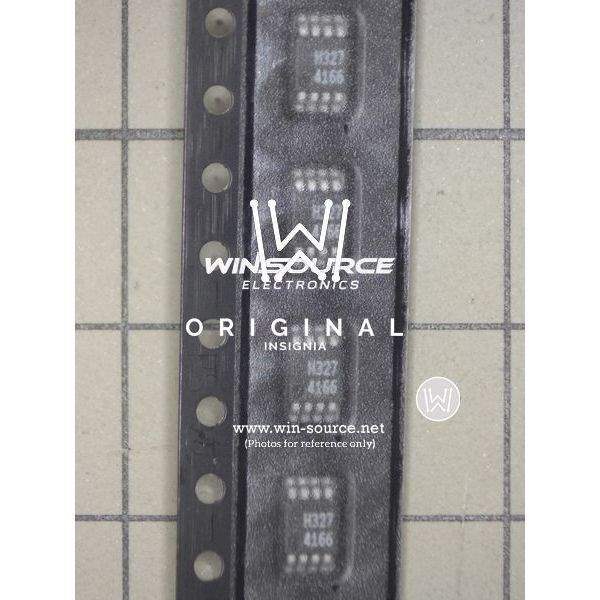

• Package Type: Enclosed in an MSOP-8 (MS8) package, the HMC327MS8GETR is compact and suitable for space-constrained applications.
• Temperature Range: It operates within an extended industrial temperature range, ensuring reliability and consistent performance across diverse environmental conditions.

Applications

The HMC327MS8GETR is engineered to meet the demanding requirements of high-frequency signal processing in advanced communication systems. Its applications include, but are not limited to:

• Point-to-point and point-to-multipoint radios
• Wireless local loop
• VSAT/Satcom
• Test equipment and sensors
• Military and space

Quality and Reliability

Analog Devices Inc. is committed to providing high-quality products, and the HMC327MS8GETR is no exception. It is manufactured to meet stringent quality standards, ensuring reliable performance for critical communication infrastructure. The product is also available in tape and reel packaging, making it suitable for automated assembly processes.
