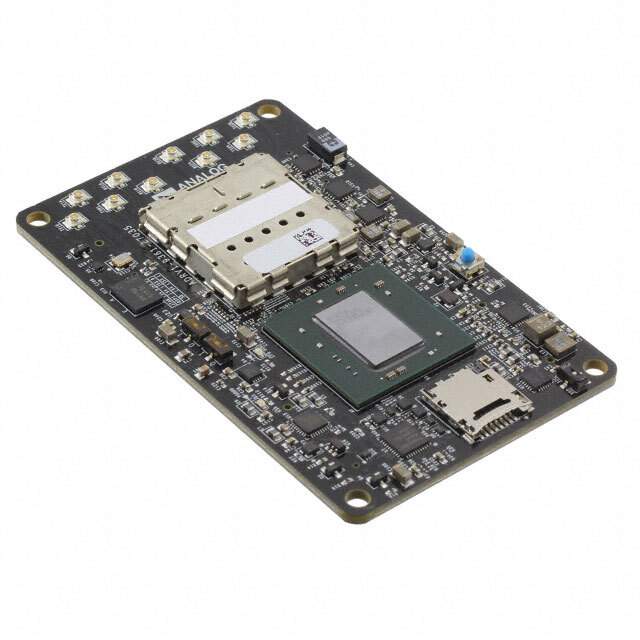

ADRV9361-Z7035 RF Agile Transceiver™

The ADRV9361-Z7035 from Analog Devices Inc. is a highly integrated Radio Frequency (RF) Agile Transceiver™ designed for use in 3G and 4G base station applications. Its versatility and performance make it ideal for a broad range of transceiver applications. The device combines an RF front end with a flexible mixed-signal baseband section and integrated frequency synthesizers, simplifying design-in by providing a configurable digital interface to a processor.

The ADRV9361-Z7035 is built upon the industry-proven technology of the AD9361, delivering a complete radio design that can tune from 70 MHz to 6 GHz. It also supports wideband and narrowband tuning (200 kHz to 56 MHz). This transceiver is capable of supporting multiple standards and bands on the same hardware, reducing the need for costly and time-consuming hardware changes.

Key features of the ADRV9361-Z7035 include:

• Dual-channel transceiver with integrated 12-bit DACs and ADCs
• Full duplex operation with independent frequency synthesizers for transmit and receive
• Support for TDD and FDD operation
• Highly configurable signal chain elements
• Automatic gain control, quadrature correction, DC offset correction, and digital filtering
• Low power consumption
• 70 MHz to 6 GHz operation
• Flexible SPI and LVDS digital interface options
• Integrated with the Xilinx Zynq-7035 SoC

The integration of the Xilinx Zynq-7035 SoC allows users to combine the RF signal processing on the ADRV9361-Z7035 with powerful programmable logic and high-performance ARM Cortex-A9 processors. This enables the creation of sophisticated and efficient system designs through a reduction in the number of discrete components required.

With its comprehensive feature set, the ADRV9361-Z7035 is well-suited for a variety of applications, including small cell base stations, radio test equipment, and general-purpose radio systems. Its programmability and wideband capability also make it an excellent choice for education, research, and hobbyist projects that require a high-performance, flexible RF platform.

Overall, the ADRV9361-Z7035 from Analog Devices Inc. represents a leap forward in integrated RF transceiver design, offering designers a scalable and cost-effective solution that meets the demanding requirements of today's wireless communication systems.
