Product Overview: ADA4304-4ACPZ-R7 from Analog Devices Inc.

The ADA4304-4ACPZ-R7, manufactured by Analog Devices Inc., is a high-performance, 75 Ohm active RF splitter designed to cater to a variety of applications that require the distribution of a single RF input signal to multiple outputs. This device is part of a series that offers excellent linearity and low noise, making it an ideal choice for video distribution, cable modems, set-top boxes, and other RF distribution systems.

Key Features

• Frequency Range: The ADA4304-4ACPZ-R7 operates over a broad frequency range, making it suitable for a wide array of RF and IF applications.
• Channel Count: It features four outputs, allowing for efficient signal distribution without the need for additional external components.
• Gain Flatness: With excellent gain flatness, this device ensures consistent performance across the entire frequency range.
• Low Distortion: The low distortion levels of the ADA4304-4ACPZ-R7 contribute to the delivery of high-quality signals, which is critical in high-definition video and high-fidelity audio applications.
• Power Consumption: It is optimized for low power consumption, making it an energy-efficient solution for systems where power conservation is essential.

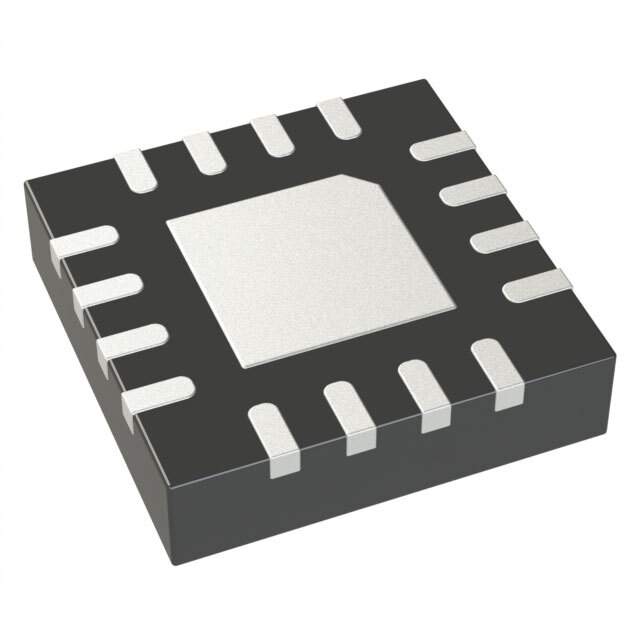

• Package: The ADA4304-4ACPZ-R7 comes in a compact LFCSP (Lead Frame Chip Scale Package), which is conducive to space-constrained applications.

Applications

• Cable television (CATV) systems
• Home RF distribution networks
• Set-top boxes and cable modems
• Commercial and residential AV systems
• IF distribution in wireless infrastructure

With its robust design and superior performance, the ADA4304-4ACPZ-R7 from Analog Devices Inc. stands out as a versatile component for RF signal distribution. Its low noise figure and high linearity ensure that signals are amplified and split without significant degradation, maintaining the integrity of the original signal across all outputs. Whether for commercial or residential use, this device offers a reliable solution for systems that demand high-quality signal fidelity and efficient power usage.

For more detailed specifications and application support, Analog Devices Inc. provides extensive technical documentation and design resources to assist engineers in integrating the ADA4304-4ACPZ-R7 into their projects.
