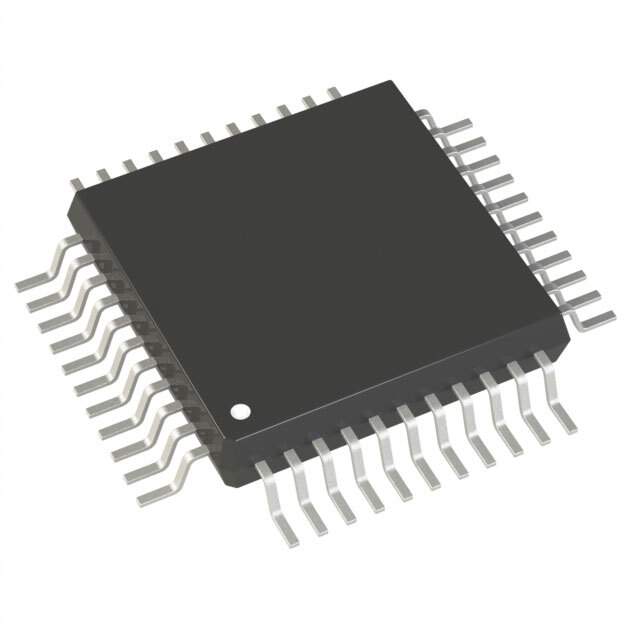

The AD7891ASZ-2 is a high-performance, fast, 12-bit analog-to-digital converter (ADC) designed by Analog Devices Inc., a leader in precision high-performance integrated circuits. This ADC is part of the AD7891 series, which is renowned for its exceptional accuracy, reliability, and ease of use in a wide range of applications.

Key Features

• Resolution: 12-bit, offering fine granularity which is ideal for precision measurement applications.
• Sampling Rate: The device can sample up to 2 MSPS (Mega Samples Per Second), enabling it to handle high-speed signals without significant latency.
• Input Voltage Range: The AD7891ASZ-2 operates with a wide input voltage range, providing flexibility for various signal levels.
• Interface: It features a user-friendly parallel interface, making it easy to connect to most microcontrollers and digital signal processors.
• Power Supply: This ADC operates on a single 5V power supply, simplifying power management in embedded systems.
• Package: Housed in a 24-pin SSOP (Shrink Small Outline Package), it is optimized for space-saving and can be easily integrated into compact circuit designs.

Applications

The AD7891ASZ-2 is versatile and can be used in a multitude of applications. It is particularly suited for:

• Data acquisition systems
• Medical instruments
• Industrial process control
• Instrumentation
• Battery-powered devices
• Communication systems

With its high-speed sampling rate and precision, the AD7891ASZ-2 ADC from Analog Devices Inc. is an excellent choice for designers who require accurate and fast digital representations of analog signals. Whether for industrial, medical, or consumer applications, this ADC delivers top-notch performance and reliability, ensuring that digital systems can accurately process real-world analog inputs.
