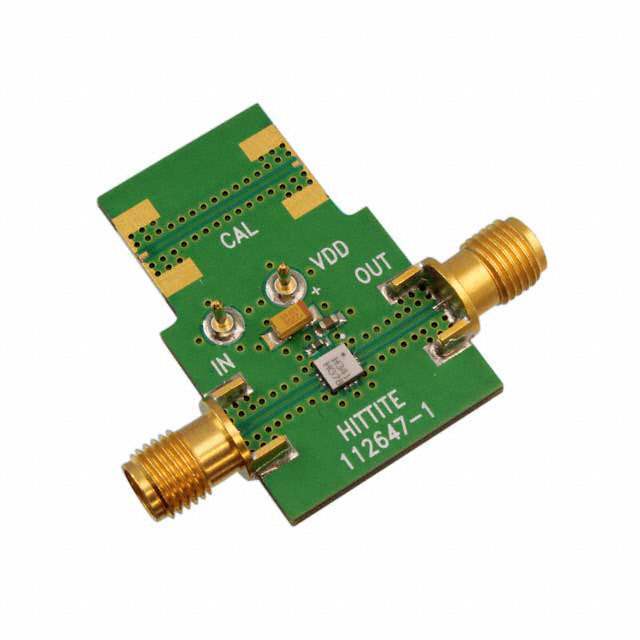

112646-HMC341LC3B Analog Devices Inc.
Same model may have multiple batches, images only for reference.

112646-HMC341LC3B

Part No 112646-HMC341LC3B
Manufacturer Analog Devices Inc.
Catalog Evaluation Boards
Description EVAL BOARD HMC341LC3B
Datasheet
112646-HMC341LC3B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310598-112646-HMC341LC3B
Manufacturer Analog Devices Inc.
Category Development Boards, Kits, Programmers >Evaluation Boards > RF, RFID, Wireless Evaluation Boards
Packaging Box
Part Status Active
Type Amplifier
Frequency 21GHz ~ 29GHz
For Use With/Related Products HMC341LC3B
Supplied Contents Board(s)
Ultra Librarian 3D Model Ultra Librarian 112646-HMC341LC3B CAD Model

Description

The HMC341LC3B is a GaAs pHEMT MMIC Low Noise Amplifier housed in a leadless RoHS compliant SMT package. Operating from 21 to 29 GHz, the amplifier provides 13 dB of gain and a noise figure of 2.5 dB from a single +3V supply. The RF I/Os are DC blocked and matched to 50 Ohms requiring no external components. The HMC341LC3B eliminates the need for wire bonding, allowing the use of surface mount manufacturing techniques.
