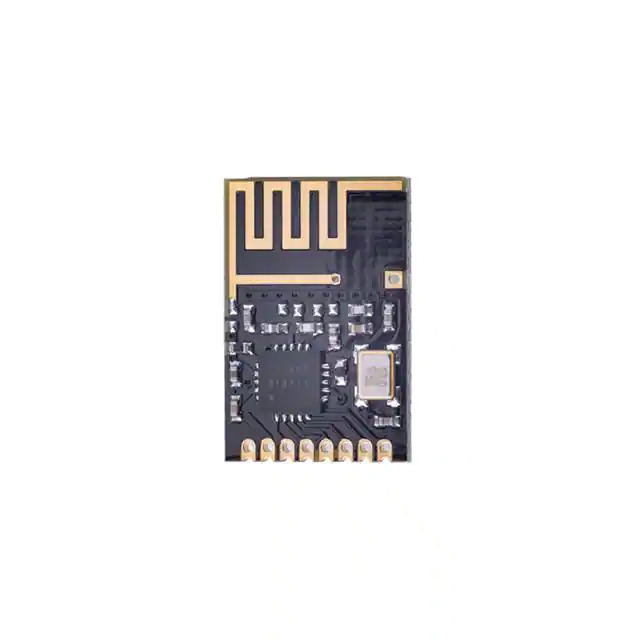

NF-03 Ai-Thinker
Same model may have multiple batches, images only for reference.

NF-03

Part No NF-03
Manufacturer Ai-Thinker
Catalog RF Transceiver Modules
Description 2.4G WIRELESS MODULE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Ai-Thinker
Series -
Package Tape & Reel
Product Status Active
RF Family/Standard General ISM > 1GHz
Protocol -
Modulation FSK, GFSK
Frequency 2.4GHz ~ 2.525GHz
Data Rate 2Mbps
Power - Output 7dBm
Sensitivity -96dBm
Serial Interfaces SPI
Antenna Type PCB Trace
Utilized IC / Part -
Memory Size -
Voltage - Supply 1.9V ~ 3.6V
Current - Receiving 15mA
Current - Transmitting 25mA
Mounting Type Surface Mount
Temperature Range - Operating -20°C ~ 70°C
Package / Case 8-SMD Module
MSL Level 1 (Unlimited)
Win Source Part Number 1370937-NF-03
Ultra Librarian 3D Model Ultra Librarian NF-03 CAD Model

Description

The Ai-Thinker 1370937-NF-03 is a 2.4GHz ~ 2.525GHz RF transceiver module suitable for various wireless communication applications.

  • Frequency: 2.4GHz ~ 2.525GHz
  • Operating Temperature: -20°C to 70°C
  • Voltage Supply: 1.9V ~ 3.6V
  • Power Output: 7dBm
  • Sensitivity: -96dBm
  • Data Rate: 2Mbps
  • Interface: SPI
  • Package: 8-SMD Module
